103681-2
ActiveTE Connectivity AMP Connectors

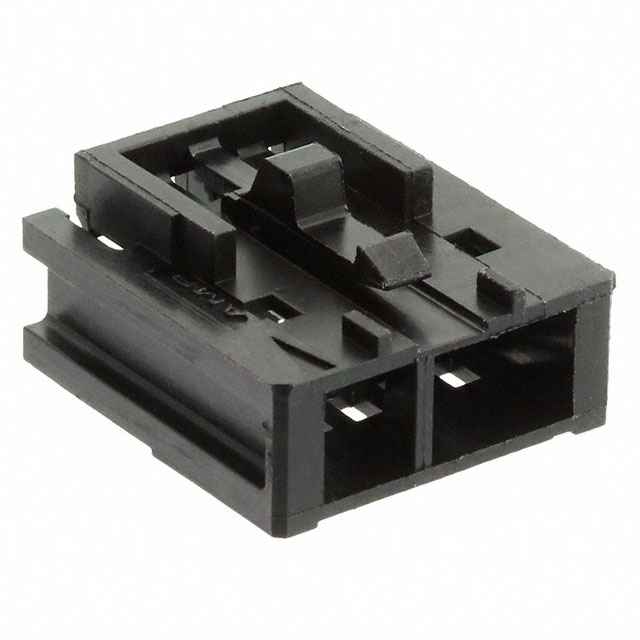

CONN SHROUD 10POS DL .100 LATCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103681-2
ActiveTE Connectivity AMP Connectors
CONN SHROUD 10POS DL .100 LATCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103681-2 | 103681 Series |
|---|---|---|
| Accessory Type | Shroud | Shroud |
| Color | - | Black |
| Connector Type | - | Plug |
| Contact Termination | - | Crimp |
| Contact Type | - | Male Pin |
| Fastening Type | - | Latch Holder |
| Features | Latch Lock | Latch Lock |
| For Use With/Related Products | AMPMODU MTE Series | AMPMODU MTE Series |
| Insulation Material | - | Thermoplastic |
| Mounting Type | - | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 8 - 10 |
| Number of Positions | - | 16 |
| Number of Rows | - | 1 |
| Operating Temperature | - | -65 ░C |
| Operating Temperature | - | 105 ░C |
| Pitch | - | 2.54 mm |
| Pitch | - | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 6000 | $ 1.32 | |
103681 Series
CONN PLUG HSG 16POS 2.54MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Mounting Type | Contact Type | Connector Type | Note | Contact Termination | Insulation Material | Color | Pitch [x] | Pitch [x] | Fastening Type | Features | Number of Positions | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103681-5 | -65 ░C | 105 ░C | 1 | 16 | Free Hanging (In-Line) | Male Pin | Plug | Contacts Not Included | Crimp | Thermoplastic | Black | 2.54 mm | 0.1 in | Latch Holder | ||||
TE Connectivity AMP Connectors 103681-2 | Latch Lock | 10 | AMPMODU MTE Series | Shroud | ||||||||||||||
TE Connectivity AMP Connectors 103681-1 | Latch Lock | 8 | AMPMODU MTE Series | Shroud |
Description
General part information
103681 Series
Connector Shroud For AMPMODU MTE Series
