82841 8775000

Active

Belden Inc.

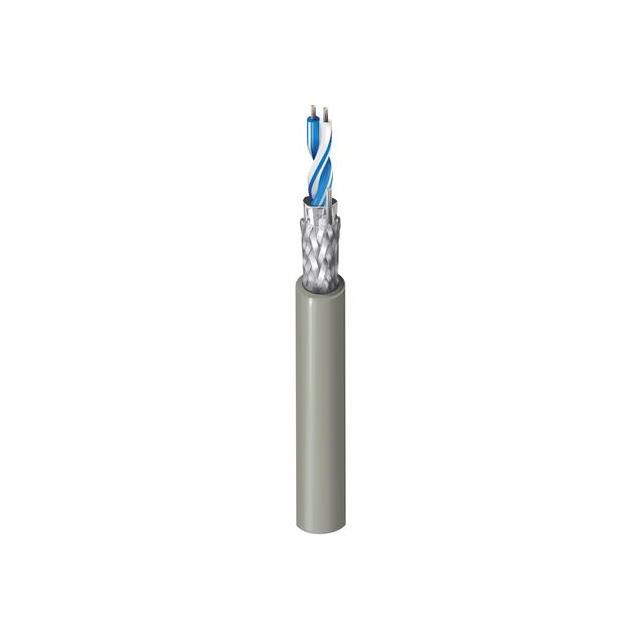

CABLE 2COND 24AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82841 8775000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.204 in
Jacket (Insulation) Diameter [diameter]	5.18 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Coverage	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Length [x]	Length [x]	Conductor Material	Wire Gauge	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. 82841 877500	90 % 100 %	2	Foam Fluorinated Ethylene-Propylene (FFEP)	32 AWG	7	Multi-Conductor	300 V	0.015 in	0.381 mm	Computer	500 '	152.4 m	Copper Tinned	24 AWG	Braid Foil	Natural	0.204 in	5.18 mm	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire	Aluminum Copper Tinned	75 ░C	0 °C
Belden Inc. 82841 8775000	90 % 100 %	2	Foam Fluorinated Ethylene-Propylene (FFEP)	32 AWG	7	Multi-Conductor	300 V	0.015 in	0.381 mm	Computer			Copper Tinned	24 AWG	Braid Foil	Natural	0.204 in	5.18 mm	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire	Aluminum Copper Tinned	75 ░C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.53

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 24 AWG Foil, Braid 5000' (1524.0m)
