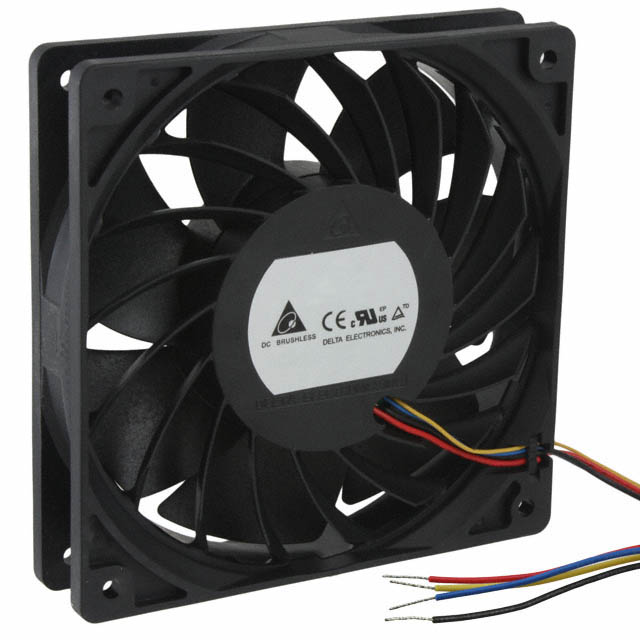

THB1224B-PM00

Active

Delta Electronics

FAN AXIAL 120X25.4MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 120X25.4MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB1224B-PM00

Air Flow	174.7 CFM
Air Flow	4.89 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.95 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	8300 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	2.139 in H2O
Static Pressure	532.8 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.5 VDC
Voltage Range [Min]	18 VDC
Weight	198 g
Weight	0.437 lb
Width [y]	25.4 mm

FAN AXIAL 120X25.4MM 24VDC WIRE

Part	Noise	Width [y]	Voltage - Rated	Current Rating (Amps)	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Fan Type	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Ingress Protection	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Features	Material - Frame	Static Pressure	Static Pressure	Termination	RPM
Delta Electronics THB1224B-PM00	65 dB	25.4 mm	24 VDC	0.95 A	198 g	0.437 lb	18 VDC	27.5 VDC	Plastic	Tubeaxial	Ball	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	IP55 - Dust Protected, Water Resistant	CE, cURus, TUV	120 mm	120 mm	174.7 CFM	4.89 m³/min	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Plastic	2.139 in H2O	532.8 Pa	4 Wire Leads	8300 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 174.7 CFM (4.89m³/min) 4 Wire Leads
