C3801/40 100

Unknown

3M (TC)

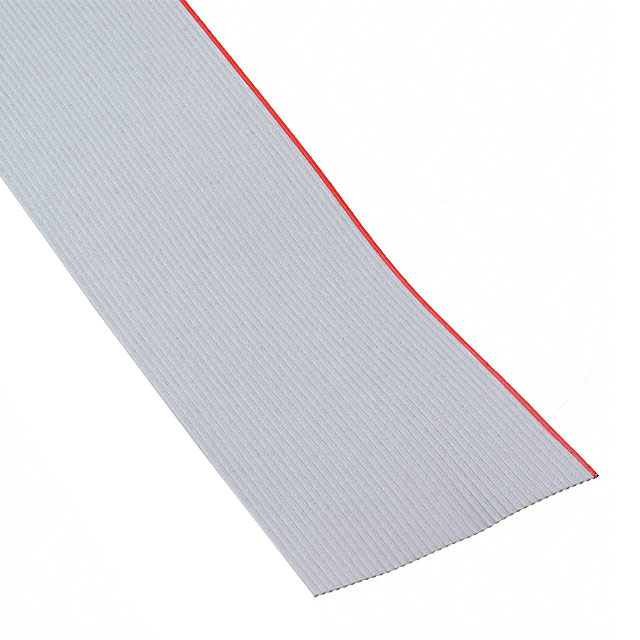

CBL RIBN 40COND 0.05 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3801/40 100

Unknown

3M (TC)

CBL RIBN 40COND 0.05 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3801/40 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 7 Strands
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m
Length	50 ft
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.99 mm
Ribbon Thickness	0.039 in
Ribbon Width [y]	50.8 mm
Ribbon Width [y]	2 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	26 AWG

C3801 Series

Part	Number of Conductors	Conductor Strand	Shielding	Features	First Conductor Mark	Ribbon Width [y]	Ribbon Width [y]	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Pitch [x]	Pitch [x]	Jacket (Insulation) Material	Ratings	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Resistance	Cable Type	Length	Length	Voltage	Ribbon Width	Ribbon Width	Spool Size	Spool Size	Ribbon Width [custom]	Ribbon Width [custom]	Length	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
3M (TC) C3801/40 100	40	7 Strands 34 AWG	Unshielded	Zippable	Red	50.8 mm	2 in	3.05 m	10 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable	15.24 m	50 ft	300 V
3M (TC) C3801/20 100	20	7 Strands 34 AWG	Unshielded	Zippable	Red			3.05 m 30.48 m	10 ft 100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable	15.24 m	50 ft	300 V	1 in	25.4 mm
3M (TC) C3801/16 100	16	7 Strands 34 AWG	Unshielded	Zippable	Red	20.32 mm	0.8 in	3.05 m 30.48 m	10 ft 100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable			300 V
3M (TC) C3801/10 100	10	7 Strands 34 AWG	Unshielded	Zippable	Red			3.05 m 30.48 m	10 ft 100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable	7.62 m 304.8 mm	1 ft 25 ft	300 V			30.48 m	100 ft	0.5 "	12.7 mm	Enter Number of Feet in Order Quantity
3M (TC) C3801/64 100	64	7 Strands 34 AWG	Unshielded	Zippable	Red	81.28 mm	3.2 in	30.48 m	100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable			300 V
3M (TC) C3801/60 100	60	7 Strands 34 AWG	Unshielded	Zippable	Red			30.48 m	100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable			300 V	76.2 mm							3 in
3M (TC) C3801/24 100	24	7 Strands 34 AWG	Unshielded	Zippable	Red	30.48 mm	1.2 in	30.48 m	100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable			300 V
3M (TC) C3801/25 100	25	7 Strands 34 AWG	Unshielded	Zippable	Red			30.48 m	100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable			300 V									1.25 "	31.75 mm
3M (TC) C3801/26 100	26	7 Strands 34 AWG	Unshielded	Zippable	Red			3.05 m 30.48 m	10 ft 100 ft	0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable	15.24 m 304.8 mm	1 ft 50 ft	300 V	33.02 mm							1.3 "
3M (TC) C3801/10 300SF	10	7 Strands 34 AWG	Unshielded	Splice Free Zippable	Red					0.99 mm	0.039 in	26 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	UL Style 2651	Gray	Copper Tinned	-20 C	105 ░C	10 GOhm	Flat Cable	91.44 m	300 ft	300 V					0.5 "	12.7 mm
