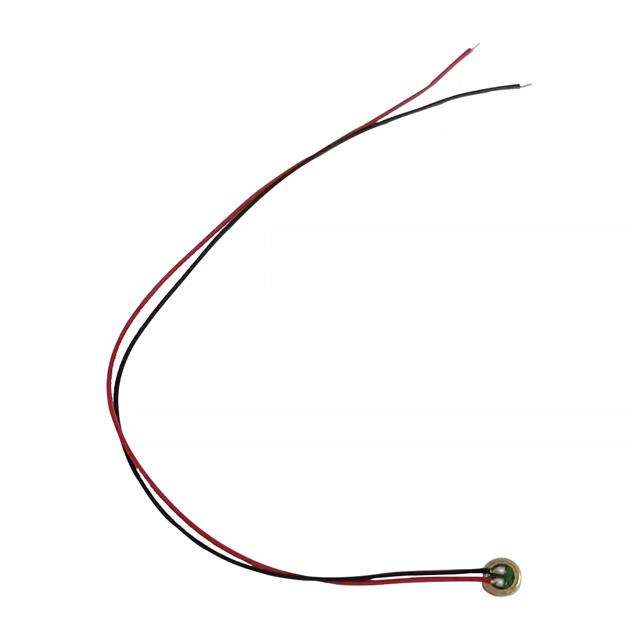

UB6018D-442S-YATRAC-00-0
ActiveHuizhou N Acoustics Co., Ltd
MIC COND UNI -44DB 0.236"DIA
UB6018D-442S-YATRAC-00-0
ActiveHuizhou N Acoustics Co., Ltd
MIC COND UNI -44DB 0.236"DIA
Description
General part information
UB6018D-442S-YATRAC-00-0
Microphone Electret Condenser 1 V ~ 10 V Unidirectional (-44dB ±3dB @ 110dB SPL) Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | UB6018D-442S-YATRAC-00-0 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Unidirectional |
| Height (Max) | 0.079 in |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -44 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1 V |
