Description
General part information

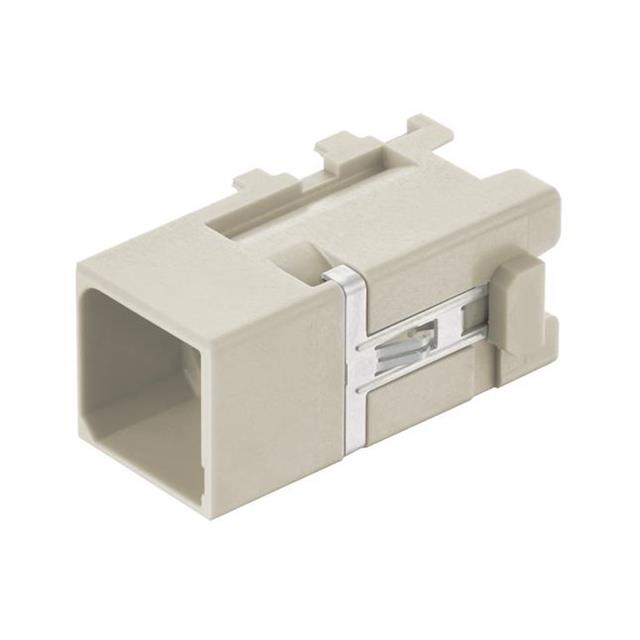

09149211002
Male Module without Contacts Gray 1 Position Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 09149211002 |
|---|---|
| Color | Gray |
| Connector Type | Module without Contacts |
| Contact Type | Han-Modular® |
| Gender | Male |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size | M12 |
| Termination Style | Crimp |
