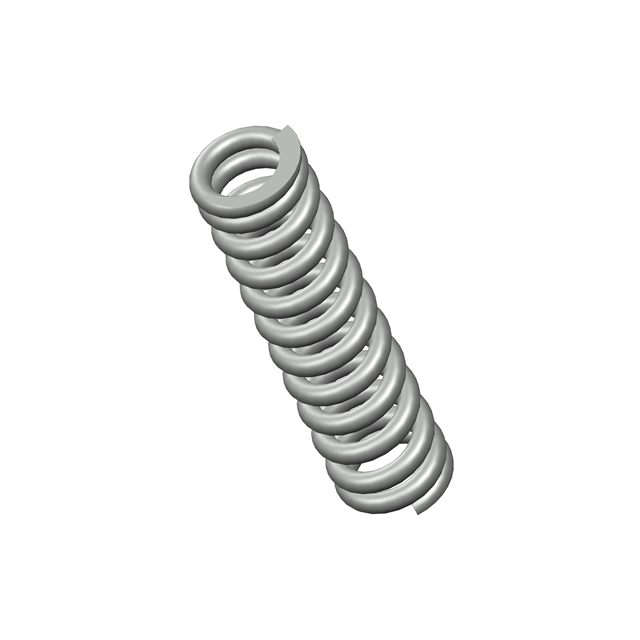

3277CS
ActiveCentury Spring Corp
COMP O= .875,L= 3.63,W= .162
3277CS
ActiveCentury Spring Corp
COMP O= .875,L= 3.63,W= .162
Description
General part information
3277CS
COMP O= .875,L= 3.63,W= .162
Technical Specifications
Parameters and characteristics for this part
| Specification | 3277CS |
|---|---|
| Diameter - Inside | 0.551 in |
| Diameter - Outside | 0.875 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 3.63 in |
| Material | Spring Steel |
| Rate (lbs/in) | 282 lbs/in |
| Type | Compression |
| Wire Diameter | 0.162 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
