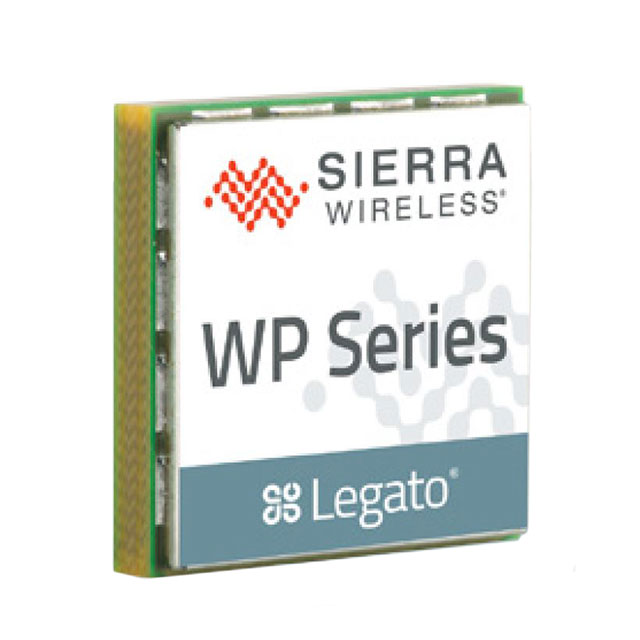

WP7504-1G_1103669

Obsolete

Sierra Wireless

RF TXRX MOD CELL NAV CAST SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MOD CELL NAV CAST SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP7504-1G_1103669	WP7504 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation
Data Rate	100 Mbps	100 Mbps
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	-	USB, I2C, UART

RF TXRX MOD CELL NAV CAST SMD

Part	Mounting Type	Data Rate	Package / Case	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Serial Interfaces
Sierra Wireless WP7504-1G_1103669	Surface Mount	100 Mbps	Module	Antenna Not Included, Castellation	85 °C	-40 °C	Cellular, Navigation
Sierra Wireless WP7504-G_1103576	Surface Mount	100 Mbps	Module	Antenna Not Included, Castellation	85 °C	-40 °C	Cellular	I2C, UART, USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation 4G LTE CAT-3 (AT&T/T-Mobile) Transceiver Module Antenna Not Included, Castellation Surface Mount
