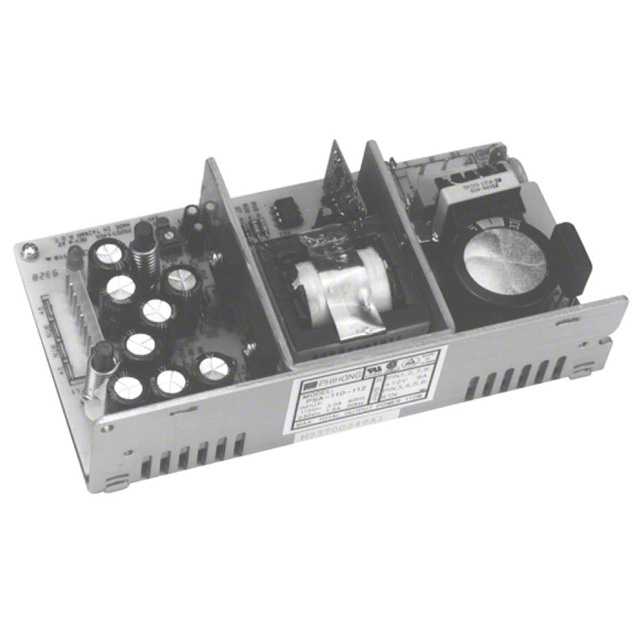

PSA110-115
ObsoletePhihong USA
AC/DC CONVERTER 15V 110W
PSA110-115
ObsoletePhihong USA
AC/DC CONVERTER 15V 110W
Description
General part information
PSA110-115
Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA110-115 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, CSA, UR, CE |
| Current - Output 1 | 7 A |
| Efficiency | 70 % |
| Features | Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 110 W |
| Size / Dimension Height | 1.7 in |
| Size / Dimension Length | 6.81 in |
| Size / Dimension Width | 3.7 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 15 V |
