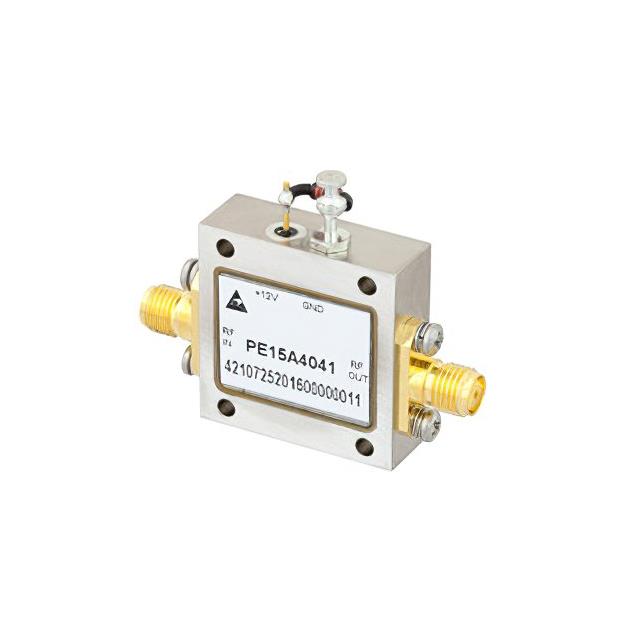

PE15A4041
ActivePasternack
500 MW P1DB, 2 GHZ TO 6 GHZ, MED
PE15A4041
ActivePasternack
500 MW P1DB, 2 GHZ TO 6 GHZ, MED
Description
General part information
PE15A4041
RF Amplifier IC General Purpose 2GHz ~ 6GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A4041 |
|---|---|
| Current - Supply | 420 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 2 GHz |
| Gain | 22 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 5.4 dB |
| P1dB | 27 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 11 VDC |
