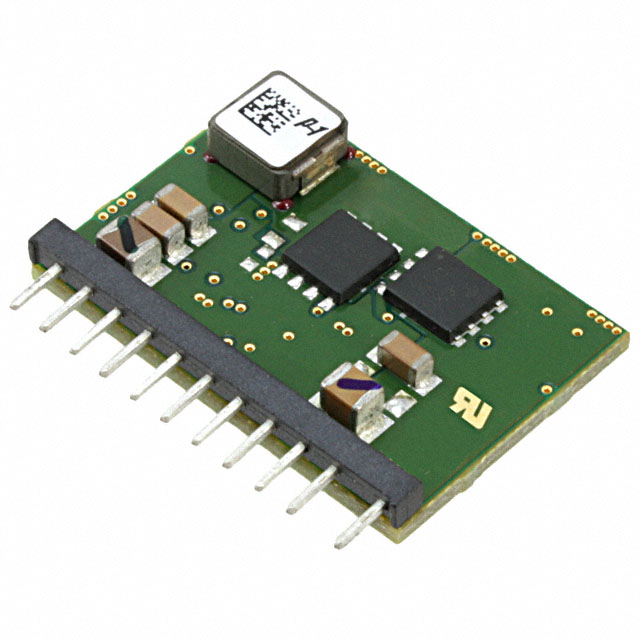

DP8110G-T100

Active

Bel Power Solutions

MODULE DC-DC 1-OUT 0.7V TO 5.5V 10A 11-PIN SIP MODULE

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 1-OUT 0.7V TO 5.5V 10A 11-PIN SIP MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	DP8110G-T100

Applications	ITE (Commercial)
Current - Output (Max) [Max]	10 A
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	11-SIP Module
Size / Dimension [x]	1.2 "
Size / Dimension [x]	30.5 mm
Size / Dimension [y]	6.7 mm
Size / Dimension [y]	0.26 "
Size / Dimension [z]	21.4 mm
Size / Dimension [z]	0.84 "
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.7 V

MODULE DC-DC 1-OUT 0.7V TO 5.5V 10A 11-PIN SIP MODULE

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Applications	Type
Bel Power Solutions DP8110G-T100	14 V	85 °C	-40 °C	1	11-SIP Module	Through Hole	1.2 "	6.7 mm	30.5 mm	21.4 mm	0.26 "	0.84 "	8 V	5.5 V	0.7 V	10 A	ITE (Commercial)	Non-Isolated PoL Module, Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 10A 8V - 14V Input

Technical documentation and resources

No documents available
