1N4148W-HF

Active

Comchip Technology

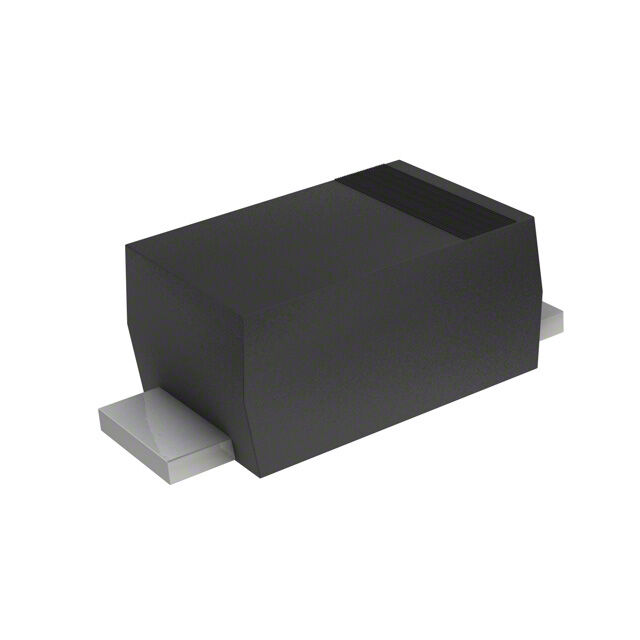

DIODE GEN PURP 100V 150MA SOD123

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GEN PURP 100V 150MA SOD123

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N4148W-HF	1N4148 Series

	-	-
Capacitance @ Vr, F	4 pF	2 - 4 pF
Current - Average Rectified (Io)	150 mA	150 mA
Current - Reverse Leakage @ Vr	5 µA	1 - 5 µA
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature - Junction	150 ¯C	125 - 150 °C
Operating Temperature - Junction	-	200 C
Operating Temperature - Junction	-	-65 C
Package / Case	SOD-123	SOD-323, SC-76, SOD-123, Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns	4 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SOD-123	SOD-323, SOD-123, DO-35
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	75 - 100 V
Voltage - Forward (Vf) (Max) @ If	1.25 V	1 - 1.25 V
Voltage - Forward (Vf) (Max) @ If	-	1.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE GEN PURP 75V 150MA SOD323

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Capacitance @ Vr, F	Supplier Device Package	Reverse Recovery Time (trr)	Speed	Speed	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Comchip Technology 1N4148WS-HF	1.25 V	150 mA	Surface Mount	1 µA	Standard	2 pF	SOD-323	4 ns	Any Speed	200 mA	125 °C	75 V	SC-76, SOD-323
Comchip Technology 1N4148W-HF		150 mA	Surface Mount	5 µA	Standard	4 pF	SOD-123	4 ns	Any Speed	200 mA	150 ¯C	100 V	SOD-123	1.25 V
Comchip Technology 1N4148-G
Comchip Technology 1N4148-G		150 mA	Through Hole	5 µA	Standard		DO-35		Any Speed	200 mA		75 V	Axial, DO-204AH, DO-35	1 V	200 C	-65 C

General part information

Diode 100 V 150mA Surface Mount SOD-123
