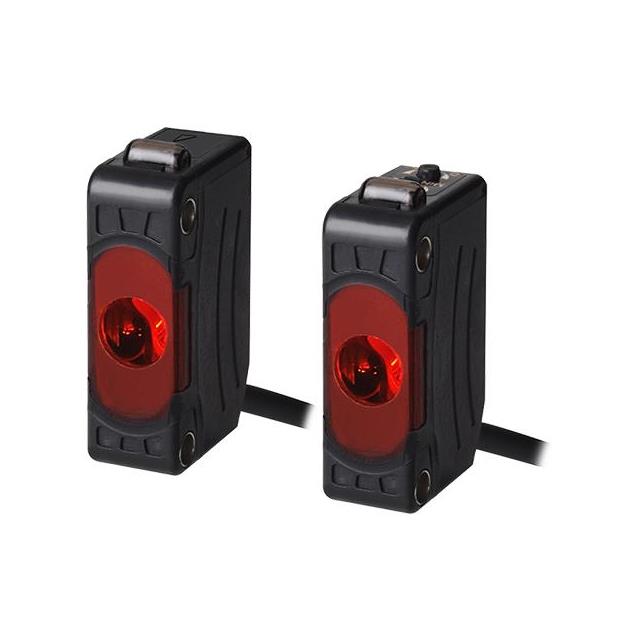

BJ10M-TDT
ActiveAUTONICS
PHOTOELECTRIC SENSOR, LONG DISTANCE, BJ SERIES, 10 M, THROUGH-BEAM, NPN, 12 V TO 24 V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
BJ10M-TDT
ActiveAUTONICS
PHOTOELECTRIC SENSOR, LONG DISTANCE, BJ SERIES, 10 M, THROUGH-BEAM, NPN, 12 V TO 24 V
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | BJ10M-TDT |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.7 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP65 |
| Light Source | Red (660nm) |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector, Light-ON\Dark-ON |
| Response Time | 1 ms |
| Sensing Distance | 32.81 ft |
| Sensing Distance | 10 m |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 95.00 | |
Description
General part information
BJ10M-TDT
Through-Beam Optical Sensor 32.81' (10m) NPN - Open Collector, Light-ON\Dark-ON
