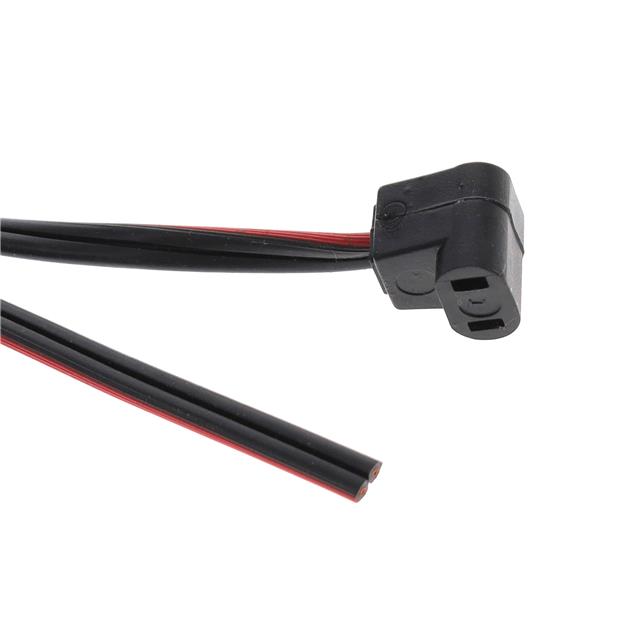

07190-36R

Active

Mechatronics Fan Group

FAN CORD W/ RED TRACER 36"

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN CORD W/ RED TRACER 36"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07190-36R	07190 Series

1st Connector	Fan Terminal Receptacle 90°, Right Angle	Fan Terminal Receptacle 90°, Right Angle
2nd Connector	Open Wires	Open Wires, NEMA 1-15 Plug
Features	Red Tracer	Red Tracer
Fits Terminal Size [x]	4.1	4.1
Fits Terminal Size [y]	0.5	0.5
Length	91.44 cm	1.83 - 91.44 m
Length	36 in	36 - 72 in
Length	-	609.6 mm
Length	-	24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Male Plug	Female Receptacle to Male Plug, Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

FAN CORD W/ RED TRACER 48"

Part	2nd Connector	Style	Wire Gauge	Number of Conductors	1st Connector	Operating Temperature	Fits Terminal Size [x]	Fits Terminal Size [y]	Length	Length	Features	Length [x]	Length [x]
Mechatronics Fan Group 07190-48R	Open Wires	Female Receptacle to Male Plug	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5
Mechatronics Fan Group 07190-48	Open Wires	Female Receptacle to Cable	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5
Mechatronics Fan Group 07190-72P	NEMA 1-15 Plug	Female Receptacle to Male Plug	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5	72 in	1.83 m
Mechatronics Fan Group 07190-36R	Open Wires	Female Receptacle to Male Plug	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5	36 in	91.44 cm	Red Tracer
Mechatronics Fan Group 07190-36	Open Wires	Female Receptacle to Cable	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5	36 in	91.44 cm
Mechatronics Fan Group 07190-24P	NEMA 1-15 Plug	Female Receptacle to Male Plug	18 AWG	2	Fan Terminal Receptacle 90°, Right Angle	105 C	4.1	0.5				609.6 mm	24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 90°, Right Angle 36.0" (914.4mm) Open Wires
