EN3P8MRAPCBN
ActiveSwitchcraft Inc.
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P8MRAPCBN
ActiveSwitchcraft Inc.
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P8MRAPCBN | EN3P8M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 - 6.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Crimp, Circuit Board, Solder, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P8M Series

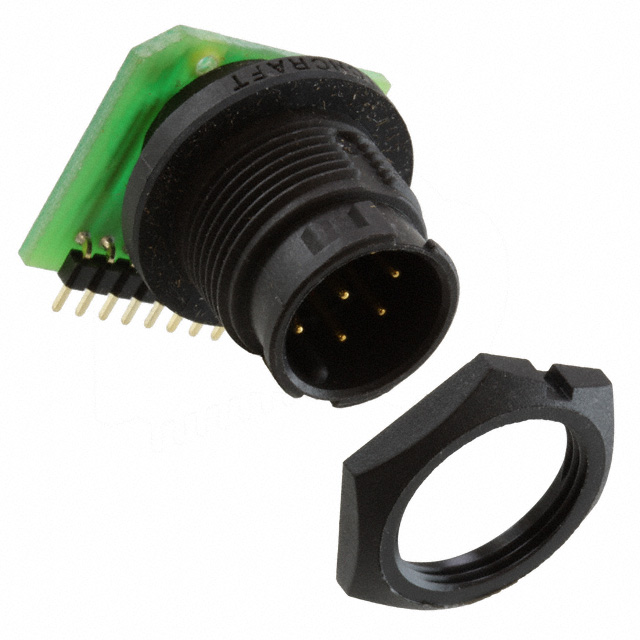

CONN RCPT MALE 8POS SOLDER CUP
| Part | Current Rating (Amps) | Insert Material | Connector Type | Mounting Feature | Color | Voltage Rating | Number of Positions | Fastening Type | Shielding | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Material Flammability Rating | Ingress Protection | Contact Finish - Mating | Primary Material | Orientation | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P8MKX | 6.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | ||
Switchcraft Inc. EN3P8MCKX | 6.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Crimp | |
Switchcraft Inc. EN3P8MRAPCBN | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P8MRAPCBW | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P8MX | 6.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | ||
Switchcraft Inc. EN3P8MCX | 6.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Crimp | |
Switchcraft Inc. EN3P8MRAPCX | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P8MPX | 6.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | Black | 250 VAC | 8 | Bayonet Lock | Unshielded | General Purpose, Instrumentation, Marine, Medical | 65 °C | -40 °C | Copper Alloy | UL94 V-0 | IP66/IP68 | Gold | Plastic | Keyed | Solder | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EN3P8M Series
8 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
