Description
General part information

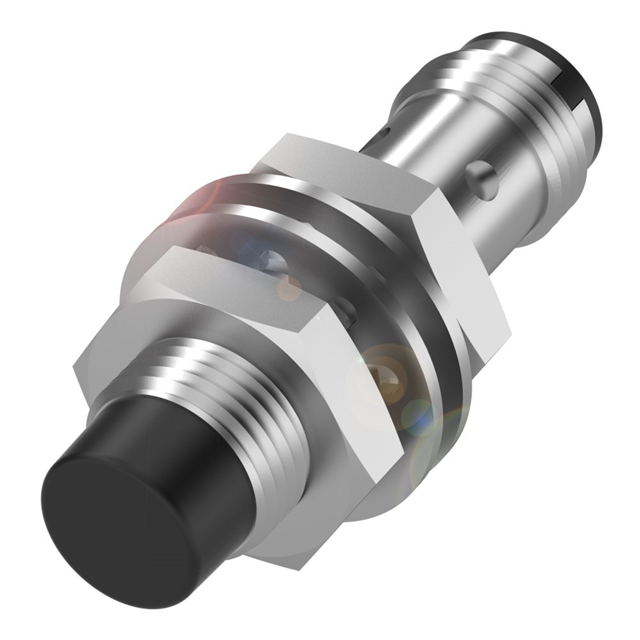

BES01PY
SENSOR PROX INDUCTIVE 8MM MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | BES01PY |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
