Description
General part information

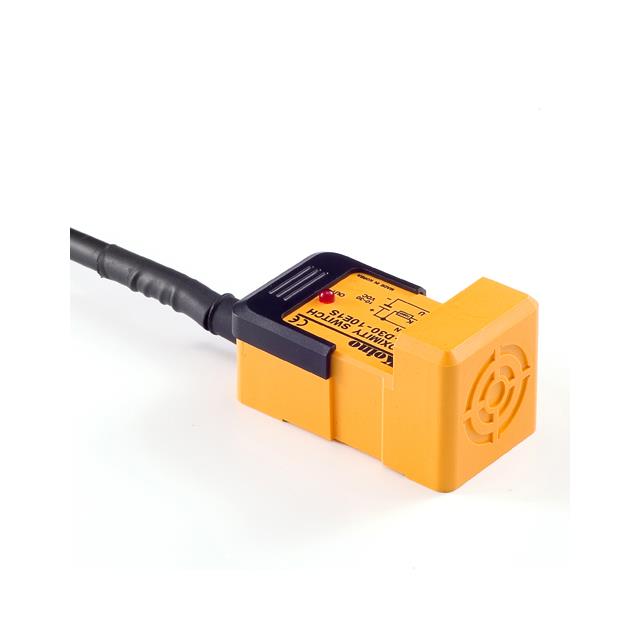

IPX-D30-10E3S
Inductive Proximity Sensor 0.394" (10mm) IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | IPX-D30-10E3S |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Response Frequency | 250 Hz |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
