Technical Specifications
Parameters and characteristics for this part
| Specification | D5V0F2U6LP-7 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.5 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

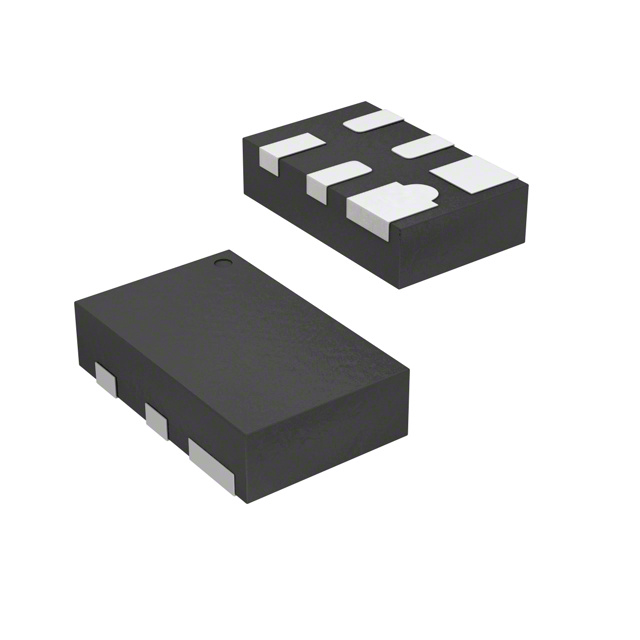

| Package / Case | 6-UFDFN |
| Power Line Protection | True |
| Supplier Device Package | U-DFN1610-6 |
| Type | Steering |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp | 12 V |
| Voltage - Reverse Standoff (Typ) | 5.5 V |
D5V0F2U3LPQ Series
2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
| Part | Package / Case | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown (Min) [Min] | Type | Voltage - Reverse Standoff (Typ) | Qualification | Voltage - Clamping (Max) @ Ipp | Grade | Power Line Protection | Unidirectional Channels | Capacitance @ Frequency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | 3-UFDFN | X1-DFN1006-3 | Surface Mount | -55 °C | 150 °C | 6 V | Zener | 5.5 V | AEC-Q101 | 12 V | Automotive | 2 | 0.5 pF | ||
Diodes Inc | 6-UFDFN | U-DFN1610-6 | Surface Mount | -55 °C | 150 °C | 6 V | Steering | 5.5 V | 12 V | 2 | 0.5 pF | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 3000 | $ 0.05 | ||
| 6000 | $ 0.05 | |||
| 9000 | $ 0.04 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.23 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
Description
General part information
D5V0F2U3LPQ Series
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
