1002-1571-019

Active

Radiall USA, Inc.

SMC M STR NA SD 2.6/50D

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR NA SD 2.6/50D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1002-1571-019	1002-1571 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RD-316	RG-178, 179, RG-174, 316, RD-316
Cable Group	-	196
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	335 V	250 - 335 VDC

SMC / STRAIGHT PLUG FEMALE CRIMP

Part	Voltage Rating	Center Contact Plating	Number of Ports	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group	Housing Color	Connector Type	Contact Termination	Body Material	Impedance	Center Contact Material	Frequency - Max [Max]	Shield Termination	Insertion Loss	Body Finish	Mounting Type	Connector Style	Dielectric Material
Radiall USA, Inc. 1002-1571-002	250 VDC	Gold	1	500	-65 ░C	165 °C	196	RG-178	Gold	Female Socket, Plug	Crimp	Brass	50 Ohms	Beryllium Copper	10 GHz	Crimp	0.25 dB	Gold	Free Hanging (In-Line)	SMC	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1002-1571-003	335 V	Gold	1	500	-65 ░C	165 °C		179, 316, RG-174	Gold	Female Socket, Plug	Crimp	Brass	50 Ohms	Beryllium Copper	10 GHz	Crimp	0.25 dB	Gold	Free Hanging (In-Line)	SMC	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1002-1571-019	335 V	Gold	1	500	-65 ░C	165 °C		RD-316	Gold	Female Socket, Plug	Crimp	Brass	50 Ohms	Beryllium Copper	10 GHz	Crimp	0.25 dB	Gold	Free Hanging (In-Line)	SMC	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

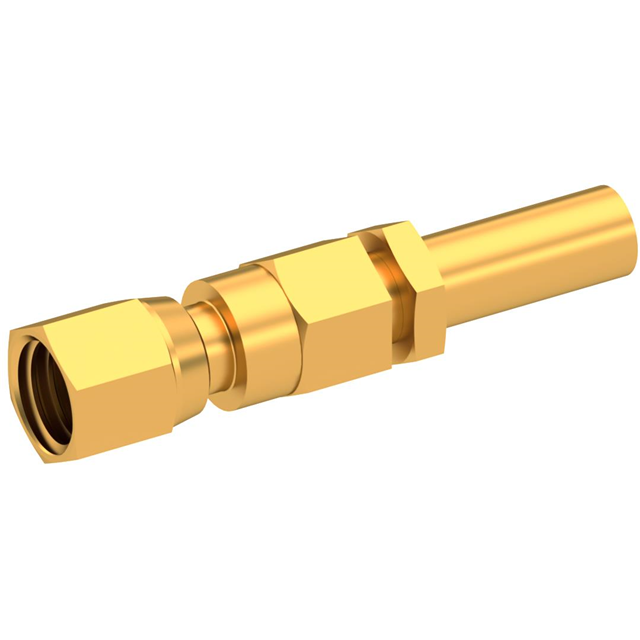

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
