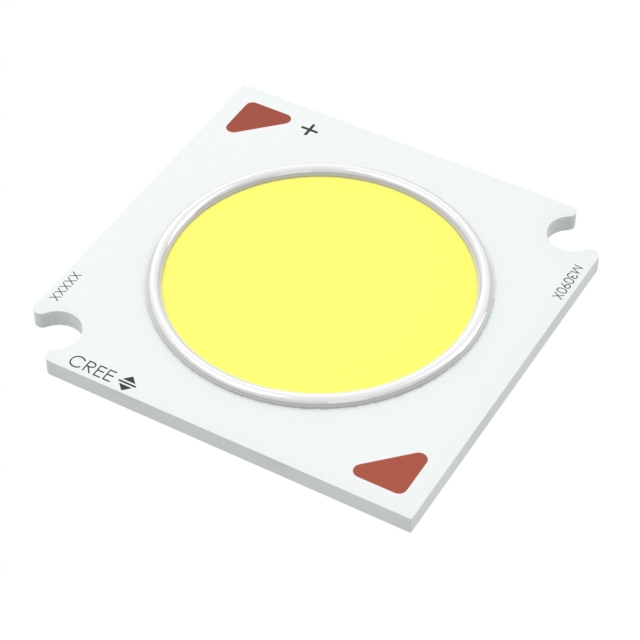

CMA3090-0000-00PR0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA3090-0000-00PR0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 41.40
		10	$ 39.33
		50	$ 38.21
		100	$ 35.19
		200	$ 32.00

Description

General part information

CMA3090 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA3090 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMA3090-0000-00PR0U0A30G	CMA3090 Series

CCT (K)	3000 K	2200 - 6500 K
Color	White, Warm	Neutral, White, Warm, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max	-	3.6 A
Current - Test	1.2 A	1.2 - 1.8 A
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	23 mm	23 mm
Lumens/Watt @ Current - Test	136 lm/W	106 - 170 lm/W
Luminous Flux @ Current/Temperature	11134 lm	8682 - 13795 lm
Size / Dimension [x]	27.35 mm	27.35 mm
Size / Dimension [y]	27.35 mm	27.35 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	68 V	45 - 68 V

CMA3090 Series

LED ARRAY, COB, NEUTRAL WHT, 12372LM

Part	Type	Current - Test	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Viewing Angle	Height [z]	CCT (K)	Voltage - Forward (Vf) (Typ)	Configuration	Lens Type	CRI (Color Rendering Index)	Color	Light Emitting Surface (LES) [diameter]	Current - Max [Max]
Cree LED CMA3090-0000-000R0H0A40G	Chip On Board (COB)	1.2 A	85 °C	27.35 mm	27.35 mm	12372 lm	152 lm/W	115 °	1.7 mm	4000 K	68 V	Square	Flat	80	Neutral, White	23 mm
Cree LED CMA3090-0000-00PR0U0A27G	Chip On Board (COB)	1.2 A	85 °C	27.35 mm	27.35 mm	10683 lm	131 lm/W	115 °	1.7 mm	2700 K	68 V	Square	Flat	90	Warm, White	23 mm
Cree LED CMA3090-0000-00PQ0U0A50G	Chip On Board (COB)	1.8 A	85 °C	27.35 mm	27.35 mm			115 °	1.7 mm		45 V	Square	Flat	90	Cool, White	23 mm	3.6 A
Cree LED CMA3090-0000-00PQ0U0A40G	Chip On Board (COB)	1.8 A	85 °C	27.35 mm	27.35 mm	11382 lm	141 lm/W	115 °	1.7 mm	4000 K	45 V	Square	Flat	90	Neutral, White	23 mm	3.6 A
Cree LED CMA3090-0000-000Q0B0A40E	Chip On Board (COB)	1.8 A	85 °C	27.35 mm	27.35 mm	13295 lm	164 lm/W	115 °	1.7 mm	4000 K	45 V	Square	Flat	70	Neutral, White	23 mm	3.6 A
Cree LED CMA3090-0000-000R0H0A30G	Chip On Board (COB)	1.2 A	85 °C	27.35 mm	27.35 mm	11720 lm	144 lm/W	115 °	1.7 mm	3000 K	68 V	Square	Flat	80	Warm, White	23 mm
Cree LED CMA3090-0000-00PQ0U0A30G	Chip On Board (COB)	1.8 A	85 °C	27.35 mm	27.35 mm	11134 lm	137 lm/W	115 °	1.7 mm	3000 K	45 V	Square	Flat	90	Warm, White	23 mm	3.6 A
Cree LED CMA3090-0000-00PR0U0A35H	Chip On Board (COB)	1.2 A	85 °C	27.35 mm	27.35 mm	11225 lm	138 lm/W	115 °	1.7 mm	3500 K	68 V	Square	Flat	90	Warm, White	23 mm
Cree LED CMA3090-0000-000Q0H0A30G	Chip On Board (COB)	1.8 A	85 °C	27.35 mm	27.35 mm	11720 lm	145 lm/W	115 °	1.7 mm	3000 K	45 V	Square	Flat	80	Warm, White	23 mm	3.6 A
Cree LED CMA3090-0000-000R0H0A22G	Chip On Board (COB)	1.2 A	85 °C	27.35 mm	27.35 mm	9909 lm	121 lm/W	115 °	1.7 mm	2200 K	68 V	Square	Flat	80	Warm, White	23 mm
