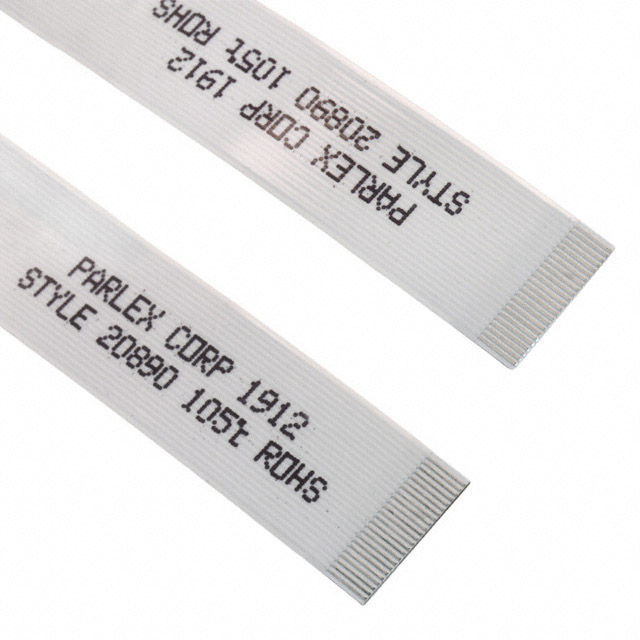

050R24-254B A

Active

Parlex USA LLC

CABLE FFC/FPC 24POS 0.5MM 10"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 24POS 0.5MM 10"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	050R24-254B A	050R24 Series

Cable Type	FPC, FFC	FPC, FFC
Length	254 mm	50.8 - 254 mm
Length	-	2 - 5 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Length [x]	10 in	10 in
Number of Conductors	24	24
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 24POS 0.5MM 2"

Part	Termination Style	Cable Type	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Length [x]
Parlex USA LLC 050R24-51B	Backers on Both Sides, Top on Both Sides	FFC, FPC	50.8 mm	2 in	0.14 in	3.56 mm	24	0.5 mm	0.02 in
Parlex USA LLC 050R24-127B	Backers on Both Sides, Top on Both Sides	FFC, FPC	127 mm	5 in	0.14 in	3.56 mm	24	0.5 mm	0.02 in
Parlex USA LLC 050R24-254B A	Backers on Both Sides, Top on Both Sides	FFC, FPC	254 mm		0.14 in	3.56 mm	24	0.5 mm	0.02 in	10 in
Parlex USA LLC 050R24-76B	Backers on Both Sides, Top on Both Sides	FFC, FPC	76.2 mm	3 in	0.14 in	3.56 mm	24	0.5 mm	0.02 in
Parlex USA LLC 050R24-102B	Backers on Both Sides, Top on Both Sides	FFC, FPC	101.6 mm	4 in	0.14 in	3.56 mm	24	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position FFC, FPC Cable 0.020" (0.50mm) 10.0" (254.0mm)
