SWH.00.250.CTMV
ActiveLEMO
CONN ADAPT JACK-JACK NIM-CAMAC
Deep-Dive with AI
Search across all available documentation for this part.
SWH.00.250.CTMV
ActiveLEMO
CONN ADAPT JACK-JACK NIM-CAMAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SWH.00.250.CTMV | SWH.00.250 Series |
|---|---|---|
| Adapter Series | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 |
| Adapter Type | Jack to Jack | Jack to Jack |
| Body Finish | Chrome | Chrome, Nickel |
| Body Material | Brass | Brass |
| Center Gender | Female to Female | Female to Female |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | NIM-CAMAC CD/N 549 Jack, Female Socket | NIM-CAMAC CD/N 549 Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 500 | 500 |
| Mounting Feature | Bulkhead | Bulkhead |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Style | Straight | Straight |
SWH.00.250 Series
CONN ADAPT JACK-JACK NIM-CAMAC
| Part | Convert From (Adapter End) | Dielectric Material | Center Gender | Mounting Feature | Style | Body Material | Body Finish | Conversion Type | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Impedance | Ingress Protection | Fastening Type | Adapter Series | Includes | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO SWH.00.250.CTMV | NIM-CAMAC CD/N 549 Jack, Female Socket | Polytetrafluoroethylene (PTFE) | Female to Female | Bulkhead | Straight | Brass | Chrome | Same Series | 100 °C | -20 C | 500 | 50 Ohms | IP50 | Push-Pull | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Jack to Jack |
LEMO SWH.00.250.NTMV | NIM-CAMAC CD/N 549 Jack, Female Socket | Polytetrafluoroethylene (PTFE) | Female to Female | Bulkhead | Straight | Brass | Nickel | Same Series | 100 °C | -20 C | 500 | 50 Ohms | IP50 | Push-Pull | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Jack to Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.41 | |
| 10 | $ 31.01 | |||
| 25 | $ 29.67 | |||
| 50 | $ 28.71 | |||
| 100 | $ 27.75 | |||
| 250 | $ 26.22 | |||
Description
General part information
SWH.00.250 Series

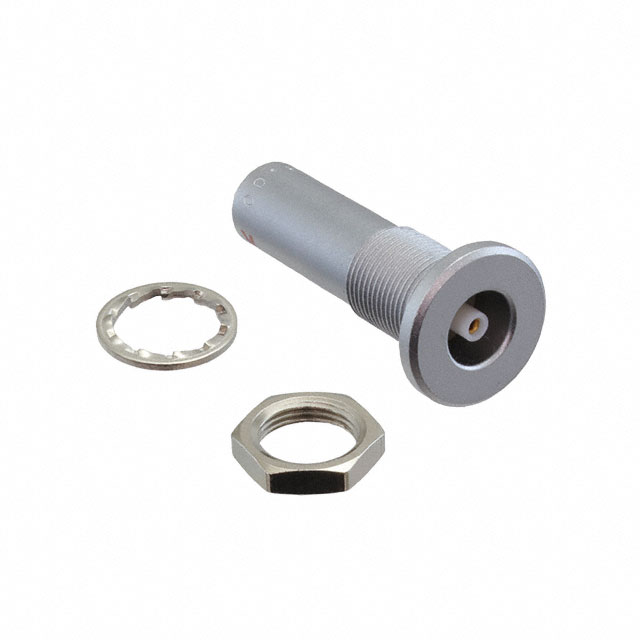

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
