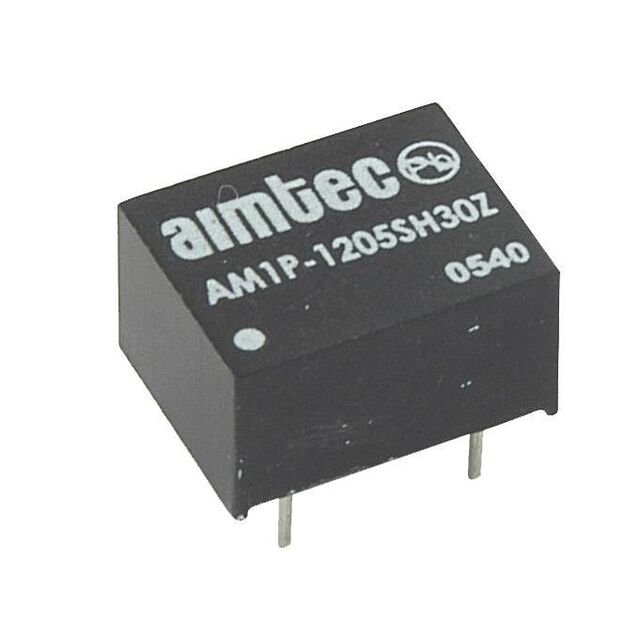

AM1P-0518SZ

Active

aimtec

DC DC CONVERTER 18V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1P-0518SZ

Active

aimtec

DC DC CONVERTER 18V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1P-0518SZ	AM1P Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output (Max)	-	28 - 152 mA
Current - Output (Max)	-	50 - 152 mA
Current - Output (Max)	-	25 mA
Current - Output (Max) [Max]	55.5 mA	25 - 303 mA
Efficiency	83 %	67 - 85 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module	8-DIP Module, 8-DIP Module, 6 Leads, 5 Leads
Package / Case	-	4 Lead
Power (Watts)	-	1 - 999 mW
Size / Dimension [x]	0.5 in	0.5 in
Size / Dimension [x]	12.7 mm	12.7 mm
Size / Dimension [y]	0.4 in	0.4 in
Size / Dimension [y]	10.2 mm	10.2 mm
Size / Dimension [z]	0.27 "	0.27 "
Size / Dimension [z]	6.9 mm	6.9 mm
Supplier Device Package	-	8-DIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	3.63 - 26.4 V
Voltage - Input (Min) [Min]	4.5 V	2.97 - 21.6 V
Voltage - Isolation	1000 V	1000 - 3000 V
Voltage - Output 1	18 V	3.3 - 24 V
Voltage - Output 1	-	3.3 - 24 V
Voltage - Output 1	-	-24 - -3.3 V
Voltage - Output 2	-	-24 - 24 V

AM1P Series

DC DC CONVERTER 24V 1.2W

...

Part	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Package / Case	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Approval Agency	Efficiency	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Supplier Device Package	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AM1P-0524SH30Z	4.5 V	50 mA	Through Hole	8-DIP Module	ITE (Commercial)	1	5.5 V	3000 V	24 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE
aimtec AM1P-1212SH30Z	10.8 V	100 mA	Through Hole	8-DIP Module	ITE (Commercial)	1	13.2 V	3000 V	12 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	80 %
aimtec AM1P-051212DZ	4.5 V		Through Hole	8-DIP Module	ITE (Commercial)	2	5.5 V	1000 V	12 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	80 %	50 mA	50 mA	12 V
aimtec AM1P-0524SZ	4.5 V	50 mA	Through Hole	8-DIP Module	ITE (Commercial)	1	5.5 V	1000 V	24 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE
aimtec AM1P-050505DZ	4.5 V		Through Hole	8-DIP Module	ITE (Commercial)	2	5.5 V	1000 V	5 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	81 %	100 mA	100 mA	5 V
aimtec AM1P-1209SZ	10.8 V	111.1 mA	Through Hole	8-DIP Module	ITE (Commercial)	1	13.2 V	1000 V	9 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	79 %
aimtec AM1P-0505SZ	4.5 V	200 mA	Through Hole	8-DIP Module, 6 Leads	ITE (Commercial)	1	5.5 V	1000 V	5 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	79 %				8-DIP
aimtec AM1P-0318SZ	2.97 V	55.5 mA	Through Hole	8-DIP Module	ITE (Commercial)	1	3.63 V	1000 V	18 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	76 %
aimtec AM1P-051818DZ	4.5 V		Through Hole	8-DIP Module	ITE (Commercial)	2	5.5 V	1000 V	18 V	85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	81 %	28 mA		18 V
aimtec AM1P-0512DZ	4.5 V		Through Hole	8-DIP Module	ITE (Commercial)	2	5.5 V	1000 V		85 °C	-40 °C	0.4 in	0.27 "	0.5 in	6.9 mm	12.7 mm	10.2 mm	Isolated Module	CE	80 %	50 mA	50 mA	-12 V		12 V	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.26
		5	$ 5.23
		10	$ 5.20
		25	$ 5.14
		40	$ 5.01
		80	$ 4.76
		160	$ 4.46

Description

General part information

AM1P Series

Isolated Module DC DC Converter 1 Output 18V 55.5mA 4.5V - 5.5V Input

Documents

Technical documentation and resources
