8713-8200-POWER-CORD
ActiveStarTech.com
2FT POWER EXTENSION CORD
8713-8200-POWER-CORD
ActiveStarTech.com
2FT POWER EXTENSION CORD
Description
General part information
8713-8200-POWER-CORD

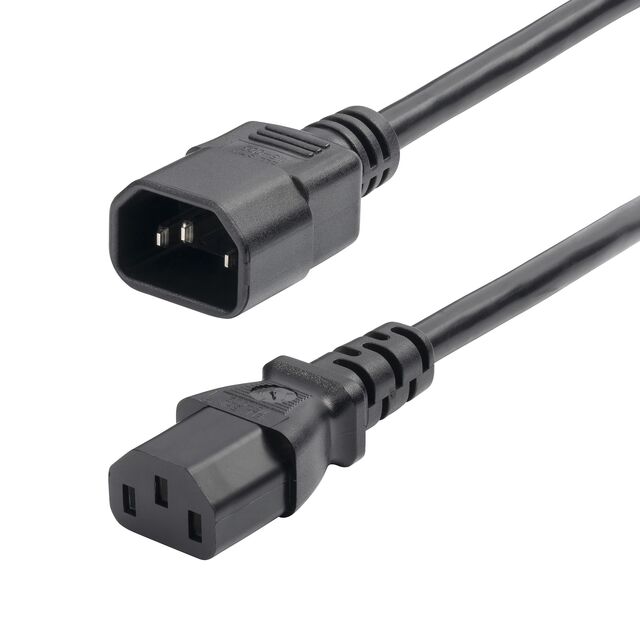

2.00' (609.6mm) Power Cord Black IEC 320-C14 To IEC 320-C13 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | 8713-8200-POWER-CORD |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C13 |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Length | 24 in |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
