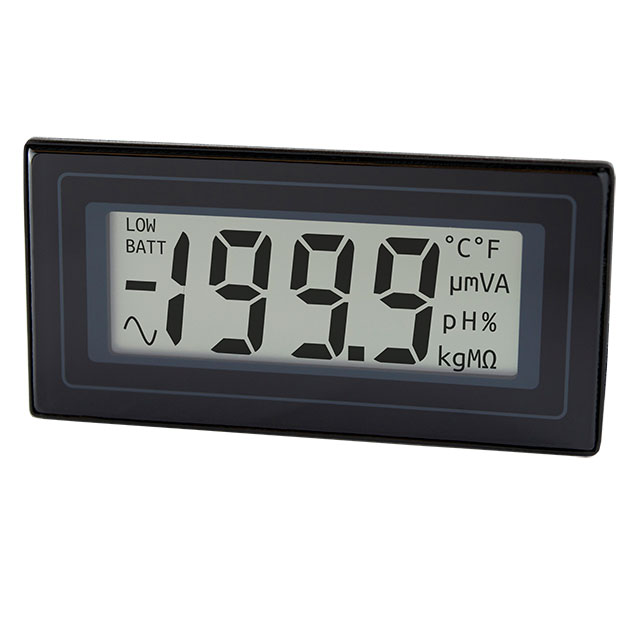

DPM 2000
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPM 2000
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DPM 2000 | - Series |
|---|---|---|
| Display Characters - Height | 0.6 in | 0.37 - 0.6 in |
| Display Characters - Height | 15.2 mm | 9.4 - 15.2 mm |
| Display Characters - Height | - | 0.25 - 0.5 in |
| Display Characters - Height | - | 6.3 - 12.7 mm |
| Display Characters - Height | - | 0.315 - 0.748 in |
| Display Characters - Height | - | 8 - 19 mm |
| Display Type | LCD - Black Characters | LCD - Black Characters, LCD - Red Characters, Backlight, LCD - Black Bar Graph, LED - Red Characters |
| Measuring Range [Max] | 0.2 VDC | 0.2 - 500 VDC |
| Measuring Range [Min] | -200 mV | -200 - 50 mV |
| Measuring Type | Voltage | Voltage, Current, Thermister |
| Mounting Type | - | Panel Mount - Surface, Panel Mount - Bezel, Window |
| Number of Characters Per Row | 3.5 | 3.5 - 4.5 |
| Number of Characters Per Row | - | 9-Segment |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 50 °C |
| Output Type | Reference | Reference, Analog |
| Panel Cutout Dimensions | - | 5.5 mm |
| Panel Cutout Dimensions [x] | 60 mm | 31 - 72 mm |
| Panel Cutout Dimensions [y] | 29.5 mm | 15 - 40 mm |
| Termination Style | PC Pin | PC Pin, Wire Leads, Solder Pad, Screw Terminal |
| Type | Voltmeter | Voltmeter, Ammeter, Temperature Meter |
| Voltage - Supply [Max] | 14 V | 4.8 - 50 V |
| Voltage - Supply [Min] | 7.5 V | 3 - 7.5 V |
- Series
VOLTMETER 0-200MVDC LCD PNL MT
| Part | Number of Characters Per Row | Termination Style | Type | Measuring Type | Output Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Measuring Range [Min] | Measuring Range [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Display Type | Display Characters - Height [z] | Display Characters - Height [z] | Display Characters - Height | Display Characters - Height | Number of Characters Per Row | Mounting Type | Panel Cutout Dimensions [diameter] | Display Characters - Height [y] | Display Characters - Height [y] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lascar Electronics V 125 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 21.4 mm | 41.5 mm | -200 mV | 0.2 VDC | 7 V | 12 V | LCD - Black Characters | 0.5 in | 12.7 mm | |||||||||
Lascar Electronics SP 100 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 21.3 mm | 34 mm | -200 mV | 0.2 VDC | 4.75 V | 5.25 V | LCD - Red Characters, Backlight | 9.4 mm | 0.37 in | |||||||||
Lascar Electronics SP 400 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 21.3 mm | 34 mm | -200 mV | 0.2 VDC | 3 V | 7.5 V | 0.384 in | 9.75 mm | ||||||||||
Lascar Electronics DPM 500 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 27 mm | 57 mm | -200 mV | 0.2 VDC | 7.5 V | 14 V | LCD - Black Characters | 0.5 in | 12.7 mm | |||||||||
Lascar Electronics V 1 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 15 mm | 31 mm | -200 mV | 0.2 VDC | 7 V | 12 V | LCD - Black Characters | 0.25 in | 6.3 mm | |||||||||
Lascar Electronics EMA 1710 | Wire Leads | Voltmeter | Voltage | Analog | 0 V | 1 VDC | 5 V | 12 V | LCD - Black Bar Graph | 9-Segment | Panel Mount - Surface | 5.5 mm | |||||||||||
Lascar Electronics OEM 1B | 3.5 | PC Pin | Voltmeter | Voltage | -200 mV | 0.2 VDC | 7.5 V | 14 V | LCD - Black Characters | 0.315 in | 8 mm | ||||||||||||
Lascar Electronics DPM 950 | 3.5 | PC Pin | Voltmeter | Voltage | Reference | 40 mm | 72 mm | -200 mV | 0.2 VDC | 7.5 V | 14 V | 0.748 in | 19 mm | ||||||||||
Lascar Electronics V 600 | 3.5 | Solder Pad | Voltmeter | Voltage | Reference | 32 mm | 62 mm | -200 mV | 0.2 VDC | 7 V | 12 V | LCD - Black Characters | 15.2 mm | 0.6 in | |||||||||
Lascar Electronics DPM 340 | 3.5 | PC Pin | Voltmeter | Voltage | 18 mm | 38 mm | -200 mV | 0.2 VDC | 4.75 V | 5.25 V | LED - Red Characters | 0.315 in | 8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 69.49 | |
Description
General part information
- Series
Voltmeter LCD - Black Characters Display Panel Mount
Documents
Technical documentation and resources
