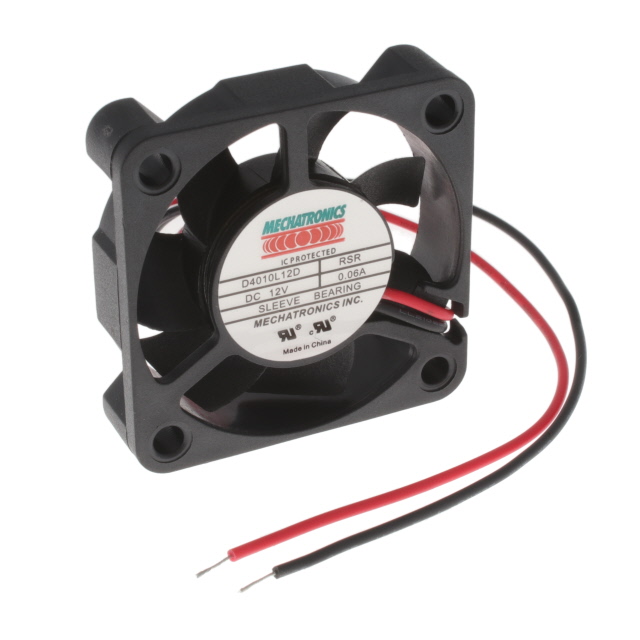

D4010L12D-RSR

Obsolete

Mechatronics Fan Group

FAN AXIAL 40X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Mechatronics Fan Group

FAN AXIAL 40X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	D4010L12D-RSR

Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [y]	10 mm

FAN AXIAL 40X10MM 12VDC WIRE

Part	Bearing Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	Termination	Features	Width [y]	Fan Type
Mechatronics Fan Group D4010L12D-RSR	Sleeve	40 mm	Square	40 mm	12 VDC	2 Wire Leads	Thermal Overload Protector (TOP)	10 mm	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sleeve 2 Wire Leads

Technical documentation and resources
