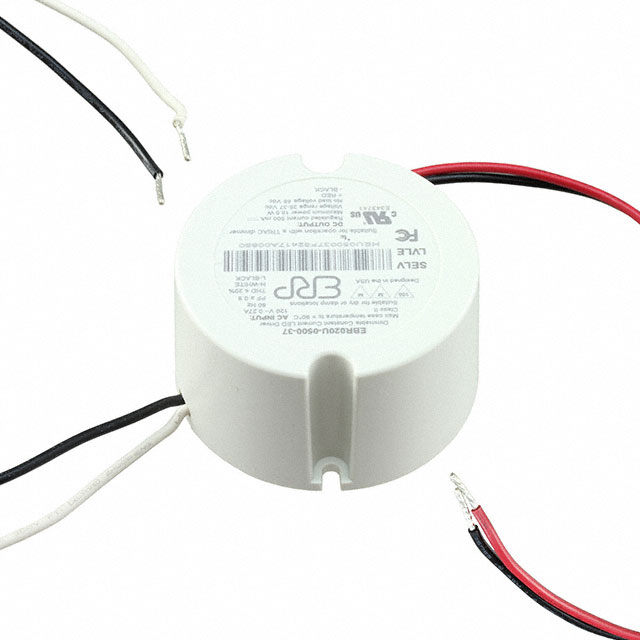

EBR020U-0500-37
ActiveERP Power, LLC
LED DRIVER CC AC/DC 25-37V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EBR020U-0500-37
ActiveERP Power, LLC
LED DRIVER CC AC/DC 25-37V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EBR020U-0500-37 | EBR020 Series |
|---|---|---|
| Approval Agency | CE, cURus | CE, cURus |
| Current - Output (Max) [Max] | 500 mA | 400 - 720 mA |
| Dimming | ELV, TRIAC | ELV, TRIAC |
| Efficiency | 87 % | 85 - 87 % |
| Features | OTP, SCP, OCP | OTP, SCP, OCP |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Power (Watts) | 19 W | 15 - 21 W |
| Ratings | IP20 | IP20 |
| Size / Dimension | 57.9 mm, 31.8 mm | 31.8 - 57.9 mm |
| Size / Dimension [diameter] | 2.28 in | 2.28 in |
| Size / Dimension [z] | 1.25 " | 1.25 " |
| Termination Style | Wire Leads | Wire Leads |
| Topology | AC DC Converter | AC DC Converter |
| Type | Constant Current | Constant Current |
| Voltage - Input (Max) | - | 240 VAC |
| Voltage - Input (Max) [Max] [custom] | 132 VAC | 132 VAC |
| Voltage - Input (Min) [Min] | 90 VAC | 90 - 220 VAC |
| Voltage - Output [Max] | 37 V | 21 - 42 V |
| Voltage - Output [Min] | 25 V | 14 - 30 V |
| Weight | 170.5 g | 170.5 g |
| Weight | 0.376 lb | 0.376 lb |
EBR020 Series
LED DRIVER CC AC/DC 30-42V 400MA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] [custom] | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [z] | Number of Outputs | Voltage - Output [Max] | Voltage - Output [Min] | Weight | Weight | Dimming | Topology | Termination Style | Current - Output (Max) [Max] | Efficiency | Power (Watts) | Voltage - Input (Min) [Min] | Type | Ratings | Mounting Type | Features | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ERP Power, LLC EBR020U-0400-42 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 42 V | 30 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 400 mA | 87 % | 17 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | |
ERP Power, LLC EBR020E-0500-42-CE | -30 ░C | 90 °C | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 42 V | 30 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 500 mA | 87 % | 21 W | 220 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | 240 VAC | |
ERP Power, LLC EBR020U-0720-21 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 21 V | 14 V | ELV, TRIAC | AC DC Converter | Wire Leads | 720 mA | 85 % | 15 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | |||
ERP Power, LLC EBR020U-0500-42 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 42 V | 30 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 500 mA | 87 % | 21 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | |
ERP Power, LLC EBR020U-0500-37 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 37 V | 25 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 500 mA | 87 % | 19 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | |
ERP Power, LLC EBR020U-0500-32 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 32 VDC | 21 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 500 mA | 87 % | 16 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP | |
ERP Power, LLC EBR020U-0700-30 | -30 ░C | 90 °C | 132 VAC | CE, cURus | 2.28 in | 31.8 mm, 57.9 mm | 1.25 " | 1 | 30 VDC | 20 V | 170.5 g | 0.376 lb | ELV, TRIAC | AC DC Converter | Wire Leads | 700 mA | 87 % | 21 W | 90 VAC | Constant Current | IP20 | Chassis Mount | OCP, OTP, SCP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.88 | |
| 5 | $ 15.08 | |||
| 10 | $ 14.29 | |||
| 25 | $ 13.89 | |||
| 50 | $ 12.90 | |||
| 100 | $ 12.30 | |||
| 250 | $ 11.91 | |||
| 500 | $ 10.92 | |||
Description
General part information
EBR020 Series
500mA 25 ~ 37V Constant Current LED Driver AC DC Converter Topology 1 Output
