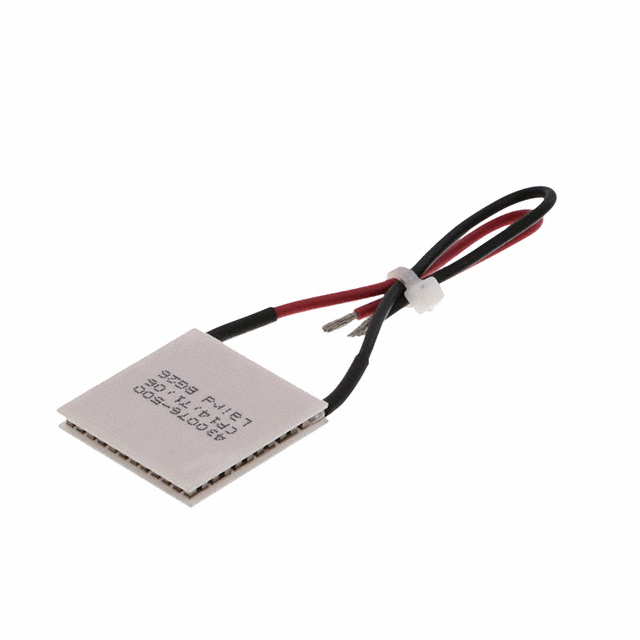

430076-500
ActiveLaird Thermal Systems, Inc.
CP14-71-06-L2-W4.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
430076-500
ActiveLaird Thermal Systems, Inc.
CP14-71-06-L2-W4.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 430076-500 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Lapped |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 28.7 W |
| Resistance | 1.26 Ohms |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 29.7 mm |
| Voltage - Max [Max] | 8.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
430076-500
Peltier Module 28.7W @ 25°C 6 A 80°C
