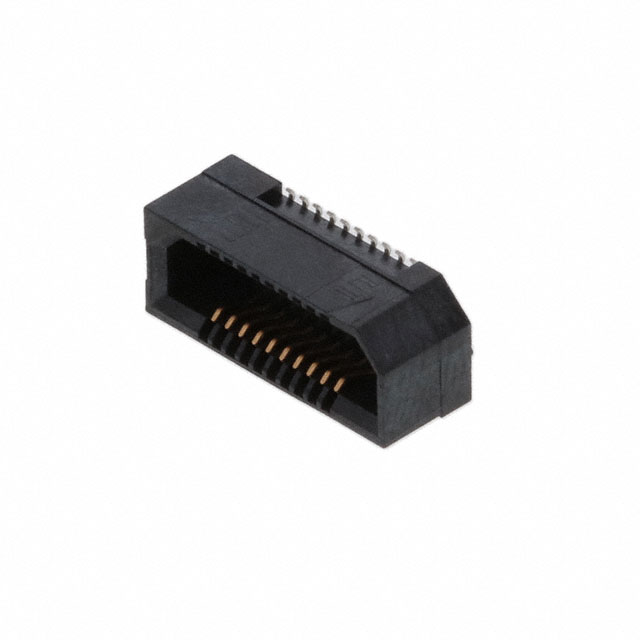

ERF8-010-05.0-S-DV-TR - ERF8-010-05.0-S-DV-TR

ERF8-010-05.0-S-DV-TR

Active
Samtec Inc.

STACKING BOARD CONNECTOR, ERF8 SERIES, RECEPTACLE, 0.8 MM, 20, SURFACE MOUNT, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1
ERF8-010-05.0-S-DV-TR - ERF8-010-05.0-S-DV-TR

ERF8-010-05.0-S-DV-TR

Active
Samtec Inc.

STACKING BOARD CONNECTOR, ERF8 SERIES, RECEPTACLE, 0.8 MM, 20, SURFACE MOUNT, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationERF8-010-05.0-S-DV-TR
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesBoard Guide
Height Above Board0.21 in
Height Above Board5.33 mm
Mated Stacking Heights14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting TypeSurface Mount
Number of Positions20
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

ERF8-010 Series

PartContact FinishPitch [x]Pitch [x]Connector TypeNumber of RowsContact Finish ThicknessContact Finish ThicknessMounting TypeMated Stacking HeightsHeight Above Board [z]Height Above Board [z]Number of PositionsFeaturesHeight Above BoardHeight Above Board
Samtec Inc.
ERF8-010-07.0-L-DV-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Surface Mount
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
20
Board Guide
Samtec Inc.
ERF8-010-01-L-D-RA-L-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Surface Mount
Right Angle
20
Board Guide
Latches
Mounting Flange
6.25 mm
0.246 in
Samtec Inc.
ERF8-010-05.0-S-DV-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
30 Áin
0.76 Ám
Surface Mount
7 mm
10 mm
13 mm
14 mm
20 mm
20
Board Guide
5.33 mm
0.21 in
Samtec Inc.
ERF8-010-01-S-D-EM2-K-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
30 Áin
0.76 Ám
Board Edge
Straddle Mount
20
Pick and Place
Samtec Inc.
ERF8-010-07.0-L-DV-EGP-K-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Surface Mount
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
20
Board Guide
Pick and Place
Samtec Inc.
ERF8-010-07.0-L-DV-EGP-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Surface Mount
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
20
Board Guide
Samtec Inc.
ERF8-010-07.0-S-DV-EGPS-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
30 Áin
0.76 Ám
Surface Mount
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
20
Board Guide
Shielded
Samtec Inc.
ERF8-010-07.0-S-DV-EGP-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
30 Áin
0.76 Ám
Surface Mount
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
20
Board Guide
Samtec Inc.
ERF8-010-01-L-D-EM2-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Board Edge
Straddle Mount
20
Samtec Inc.
ERF8-010-01-L-D-RA-TR
Gold
0.8 mm
0.031 in
Outer Shroud Contacts
Socket
2
10 Áin
0.25 Ám
Surface Mount
Right Angle
20
Board Guide
Mounting Flange
6.25 mm
0.246 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 4.64
25$ 4.15
50$ 3.81
100$ 3.72
DigikeyCut Tape (CT) 1$ 4.64
25$ 4.15
50$ 3.81
100$ 3.72
Digi-Reel® 1$ 4.64
25$ 4.15
50$ 3.81
100$ 3.72
Tape & Reel (TR) 475$ 3.72
950$ 3.24
1425$ 3.08
NewarkEach 1$ 7.13
10$ 6.83
100$ 5.70
500$ 4.83
1000$ 4.13
2500$ 3.79
5000$ 3.67

Description

General part information

ERF8-010 Series

20 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
