RCS060393K1FKEA
ActiveVishay Dale
RES THICK FILM 0603 93.1K OHM 1% 0.25W(1/4W) ±100PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200 MEDICAL
RCS060393K1FKEA
ActiveVishay Dale
RES THICK FILM 0603 93.1K OHM 1% 0.25W(1/4W) ±100PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200 MEDICAL
Description
General part information
RCS060393K1FKEA

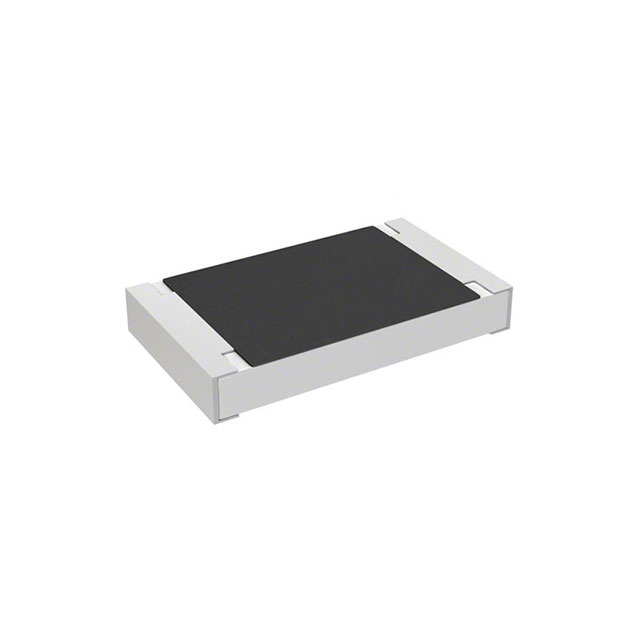

93.1 kOhms ±1% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCS060393K1FKEA |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 250 mW, 500 mW |
| Power (Watts) Options | 1/4W, 1/2W |
| Ratings | AEC-Q200 |
| Resistance | 93.1 kOhm |
| Size / Dimension Length | 0.061 in |
| Size / Dimension Width | 0.033 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
