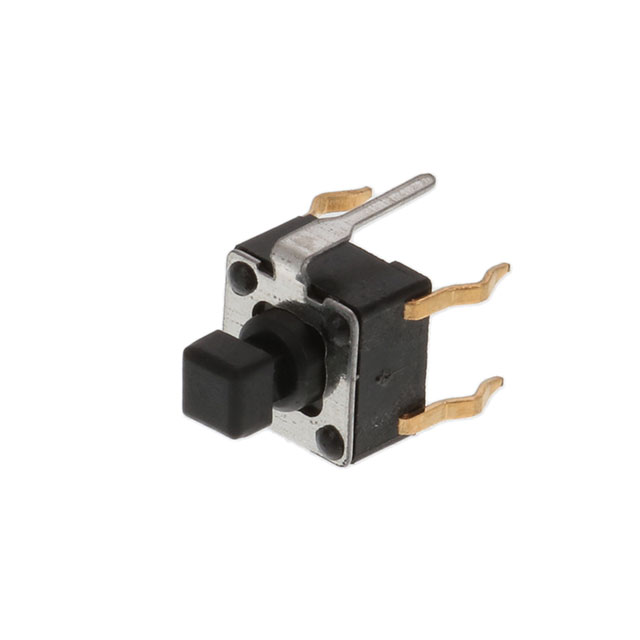

TLE1105SPF160R

Active

E-Switch

PLUGIN TACTILE SWITCH/PUSH BUTTON SWITCH ROHS

Deep-Dive with AI

Search across all available documentation for this part.

TLE1105SPF160R

Active

E-Switch

PLUGIN TACTILE SWITCH/PUSH BUTTON SWITCH ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.74
LCSC	Piece	1	$ 0.78

Description

General part information

TLE1105 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TLE1105SPF160R	TLE1105 Series

Actuator Height off PCB, Vertical	-	5 - 9.7 mm
Actuator Height off PCB, Vertical [z]	7.5 mm	4.3 - 17 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Plunger for Cap	Standard, Plunger for Cap, Square Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A	0.05 - 50 A
Features	Grounding Pin	Grounding Pin, Black Cap, Red Cap
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	-	0.25 - 100 kgf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

TLE1105 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Function	Mounting Type	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Actuator Height off PCB, Vertical [z]	Illumination	Actuator Orientation	Outline [y]	Outline [x]	Contact Rating @ Voltage	Termination Style	Mechanical Life	Features	Actuator Material	Operating Force	Actuator Height off PCB, Vertical
E-Switch TLE1105LF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	17 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105F160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105EF250Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	7.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	0.25 kgf
E-Switch TLE1105AF100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard		Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf	5 mm
E-Switch TLE1105F250Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	0.25 kgf
E-Switch TLE1105DF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	13 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105PF100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard		Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf	8.5 mm
E-Switch TLE1105SPF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Plunger for Cap	7.5 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105SPF160R1DBLK	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Square Button	13.4 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 50 VDC	PC Pin	100000 Cycles	Black Cap	Nylon, Polyamide (PA)
E-Switch TLE1105F100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf
