826470-6

Active

TE Connectivity AMP Connectors

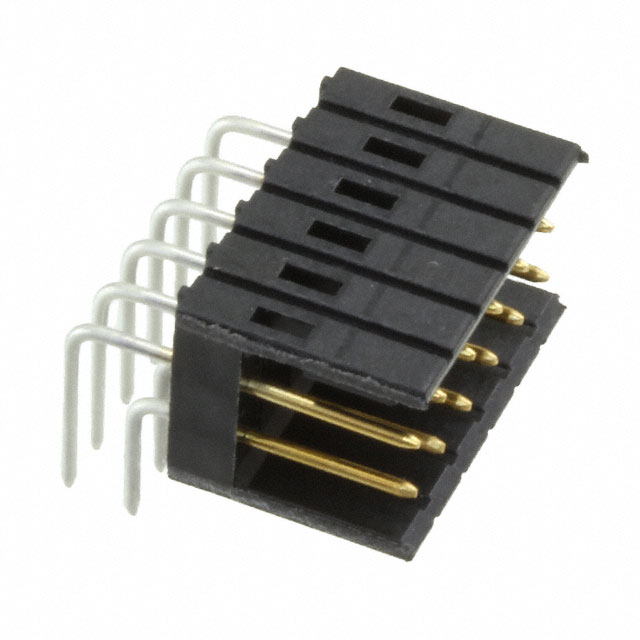

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826470-6

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 2.04

Description

General part information

826470 Series

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826470-6	826470 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Black	Black
Insulation Height	8.61 mm	8.61 mm
Insulation Height	0.339 "	0.339 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	12	8 - 22
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826470 Series

CONN HEADER R/A 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Type	Contact Length - Post	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Insulation Color	Number of Positions	Mounting Type	Contact Finish - Post	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Material Flammability Rating	Contact Material	Number of Positions
TE Connectivity AMP Connectors 826470-6	3 µm	118.1 µin	0.099 µm	3.9 µin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Header	105 ░C	-55 °C	Shrouded - 2 Wall	Male Pin	3.2 mm	0.126 in	2.54 mm	0.1 in	Gold	Black	12	Through Hole, Right Angle	Tin	Board to Board, Cable	8.61 mm	0.339 "	All	Latch Holder	2	0.1 in	2.54 mm	Square	Solder	UL94 V-0	Phosphor Bronze
TE Connectivity AMP Connectors 826470-5	3 µm	118.1 µin	0.099 µm	3.9 µin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Header	105 ░C	-55 °C	Shrouded - 2 Wall	Male Pin	3.2 mm	0.126 in	2.54 mm	0.1 in	Gold	Black	10	Through Hole, Right Angle	Tin	Board to Board, Cable	8.61 mm	0.339 "	All	Latch Holder	2	0.1 in	2.54 mm	Square	Solder	UL94 V-0	Phosphor Bronze
TE Connectivity AMP Connectors 1-826470-1	3 µm	118.1 µin	0.099 µm	3.9 µin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Header	105 ░C	-55 °C	Shrouded - 2 Wall	Male Pin	3.2 mm	0.126 in	2.54 mm	0.1 in	Gold	Black	22 positions	Through Hole, Right Angle	Tin	Board to Board, Cable	8.61 mm	0.339 "	All	Latch Holder	2	0.1 in	2.54 mm	Square	Solder	UL94 V-0	Phosphor Bronze
TE Connectivity AMP Connectors 826470-8	3 µm	118.1 µin	0.099 µm	3.9 µin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Header	105 ░C	-55 °C	Shrouded - 2 Wall	Male Pin	3.2 mm	0.126 in	2.54 mm	0.1 in	Gold	Black		Through Hole, Right Angle	Tin	Board to Board, Cable	8.61 mm	0.339 "	All	Latch Holder	2	0.1 in	2.54 mm	Square	Solder	UL94 V-0	Phosphor Bronze	16
TE Connectivity AMP Connectors 826470-4	3 µm	118.1 µin	0.099 µm	3.9 µin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Header	105 ░C	-55 °C	Shrouded - 2 Wall	Male Pin	3.2 mm	0.126 in	2.54 mm	0.1 in	Gold	Black	8	Through Hole, Right Angle	Tin	Board to Board, Cable	8.61 mm	0.339 "	All	Latch Holder	2	0.1 in	2.54 mm	Square	Solder	UL94 V-0	Phosphor Bronze
