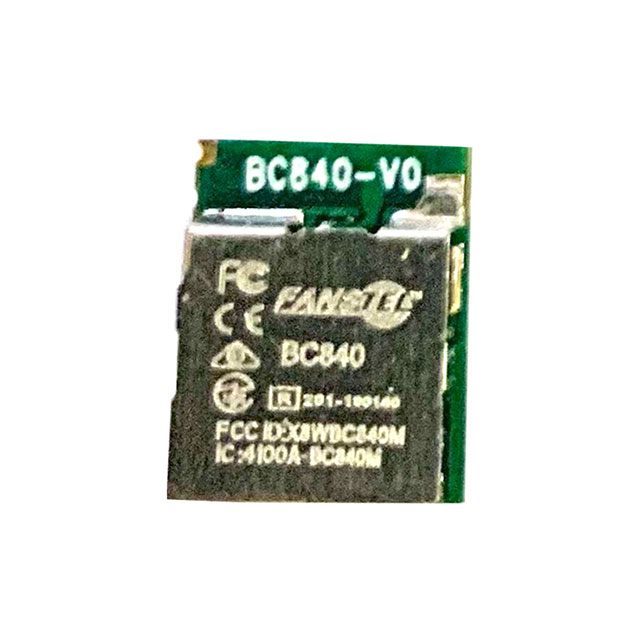

BC840
ActiveFanstel Corp.
BT+ZIGBEE MODULE 2400MHZ 64-PIN LGA T/R
BC840
ActiveFanstel Corp.
BT+ZIGBEE MODULE 2400MHZ 64-PIN LGA T/R
Description
General part information
BC840
802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BC840 |
|---|---|
| Antenna Type | PCB Trace |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 256 kB |
| Memory Size (Flash) | 1 MB |
| Memory Type | Flash, RAM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 64-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee®, Thread, Bluetooth v5.0 |
| RF Family/Standard | 802.15.4, Bluetooth |
| Sensitivity | -96 dBm |
| Serial Interfaces | UART, ADC, USB, I2C, I2S, PWM, SPI, GPIO |
| Utilized IC / Part | nRF52840-CKAA |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1.7 V |
