RC5025F1020CS
ActiveSamsung Electro-Mechanics
RES 102 OHM 1% 2/3W 2010
RC5025F1020CS
ActiveSamsung Electro-Mechanics
RES 102 OHM 1% 2/3W 2010
Description
General part information
RC5025F1020CS

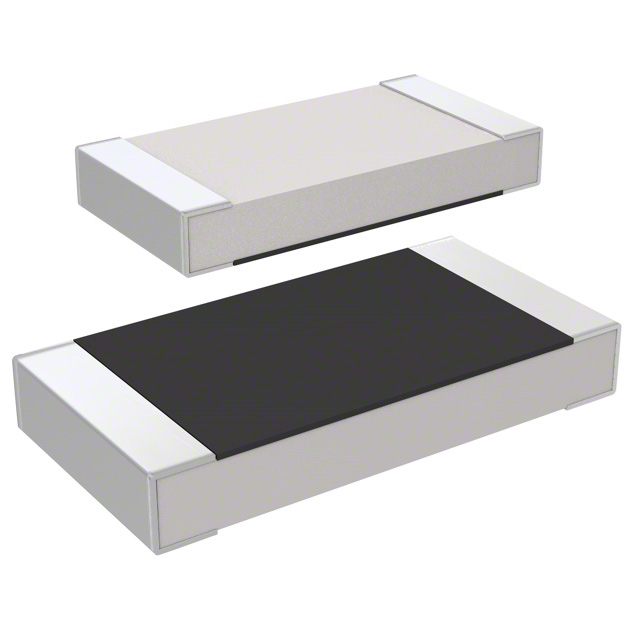

102 Ohms ±1% 0.667W, 2/3W Chip Resistor 2010 (5025 Metric) Moisture Resistant Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RC5025F1020CS |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Package Name | 2010 |
| Power (Watts) | 0.667 W |
| Power (Watts) Options | 2/3W |
| Resistance | 102 Ohm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
