13AL-110-0010-X
ObsoleteNidec Components Corporation
SWITCH PUSH SPST-NO 0.005A 5V
13AL-110-0010-X
ObsoleteNidec Components Corporation
SWITCH PUSH SPST-NO 0.005A 5V
Description
General part information
13AL-110-0010-X

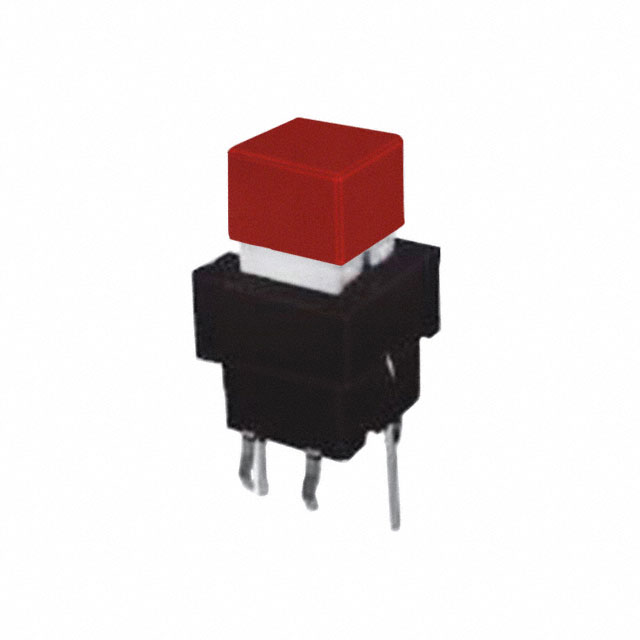

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 13AL-110-0010-X |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | SPST-NO |
| Color | Red |
| Color - Actuator/Cap | Red |
| Current Rating | 5 mA |
| Electrical Life (Cycles) | 500000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2 VDC |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - DC | 5 V |
