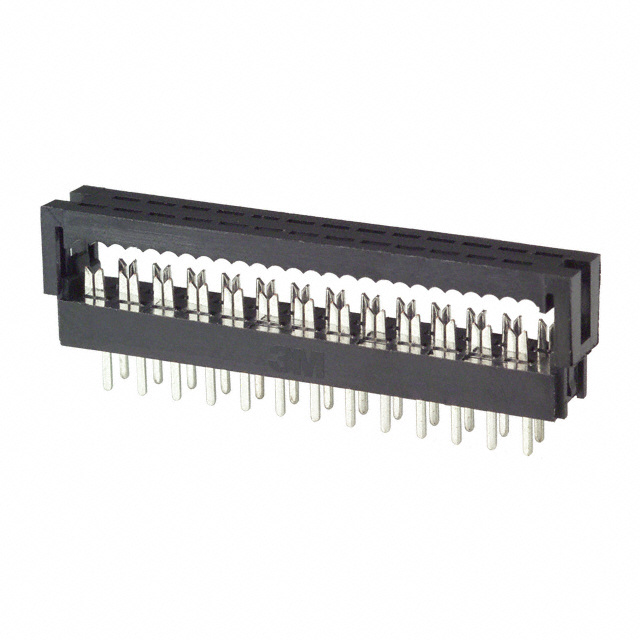

99426-0016T
Obsolete3M (TC)
CONN DIP HDR IDC 26P 28AWG VERT
Deep-Dive with AI
Search across all available documentation for this part.
99426-0016T
Obsolete3M (TC)
CONN DIP HDR IDC 26P 28AWG VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 99426-0016T |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
99426 Series
26 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG, Stranded Through Hole
