07145-60

Active

Mechatronics Fan Group

FAN CORD 60"

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN CORD 60"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07145-60	07145 Series

1st Connector	Fan Terminal Receptacle 45°	Fan Terminal Receptacle 45°
2nd Connector	Open Wires	NEMA 1-15 Plug, Open Wires
Fits Terminal Size [x]	4.1	4.1
Fits Terminal Size [y]	0.5	0.5
Length	5 '	5 - 80 in
Length	1.52 m	1.52 - 1270 cm
Length	-	609.6 mm
Length	-	12 - 24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Cable	Female Receptacle to Male Plug, Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

FAN CORD W/ WALL PLUG 36"

Part	Number of Conductors	Length	Length	2nd Connector	1st Connector	Wire Gauge	Fits Terminal Size [x]	Fits Terminal Size [y]	Operating Temperature	Style	Length [x]	Length [x]
Mechatronics Fan Group 07145-36P	2	91.44 cm	36 in	NEMA 1-15 Plug	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Male Plug
Mechatronics Fan Group 07145-36	2	91.44 cm	36 in	Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Cable
Mechatronics Fan Group 07145-80	2	2.03 m	80 "	Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Cable
Mechatronics Fan Group 07145-50	2	1270 mm	50 in	Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Cable
Mechatronics Fan Group 07145-6P	2	152.4 mm	6 in	Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Male Plug
Mechatronics Fan Group 07145-60P	2	1.52 m	5 '	NEMA 1-15 Plug	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Male Plug
Mechatronics Fan Group 07145-24P	2			NEMA 1-15 Plug	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Male Plug	609.6 mm	24 in
Mechatronics Fan Group 07145-12	2	304.8 mm		Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Cable		12 in
Mechatronics Fan Group 07145-60	2	1.52 m	5 '	Open Wires	Fan Terminal Receptacle 45°	18 AWG	4.1	0.5	105 C	Female Receptacle to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

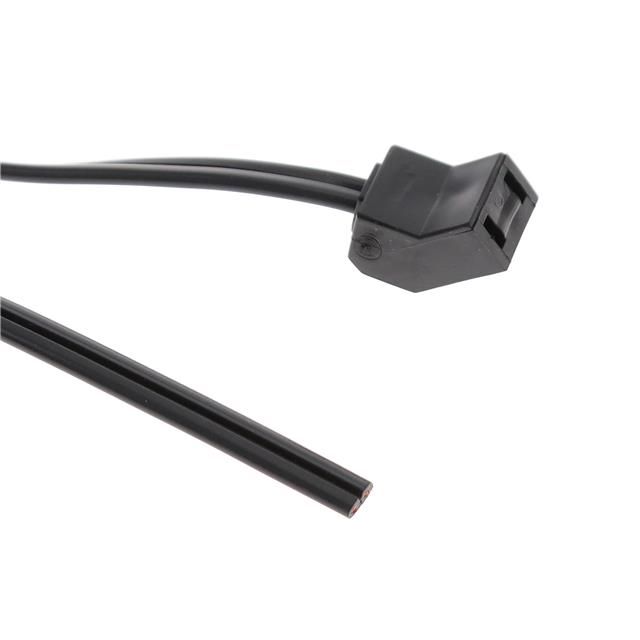

Fan Power Cord Fan Terminal Receptacle 45° 60.0" (1.52m) Open Wires
