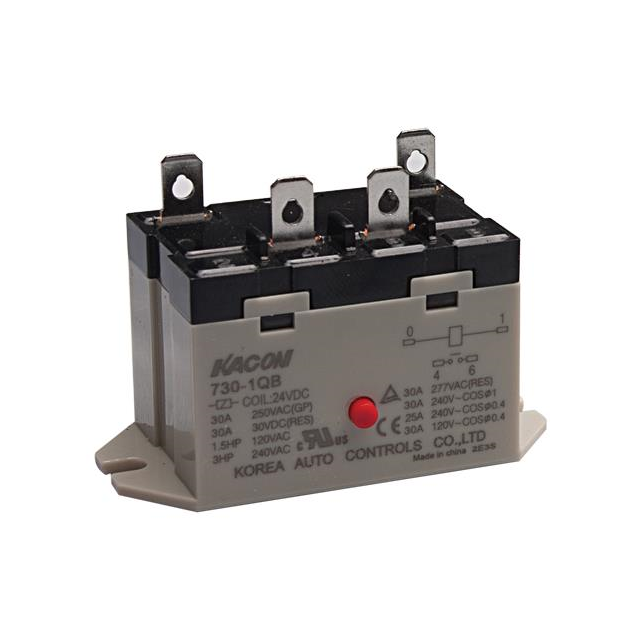

730-1QB-110VAC

Active

Kacon

RELAY GEN PURPOSE SPST 30A 110V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE SPST 30A 110V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 30A 110V

Part	Operate Time	Switching Voltage	Mounting Type	Relay Type	Features	Coil Current	Contact Material	Coil Voltage	Termination Style	Contact Rating (Current)	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form
Kacon 730-1QB-110VAC	30 ms	30 VDC, 277 VAC	Chassis Mount	General Purpose	Test Button	24.5 mA	Silver Alloy	110 VAC/DC	Quick Connect - 0.250" (6.3mm)	30 A	30 ms	-10 °C	60 °C	SPST-NO (1 Form A)
Kacon 730-1QB-220VAC	30 ms	30 VDC, 277 VAC	Chassis Mount	General Purpose	Test Button	11.8 mA	Silver Alloy	220 VAC/DC	Quick Connect - 0.250" (6.3mm)	30 A	30 ms	-10 °C	60 °C	SPST-NO (1 Form A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.12

General part information

General Purpose Relay SPST-NO (1 Form A) 110VAC Coil Chassis Mount
