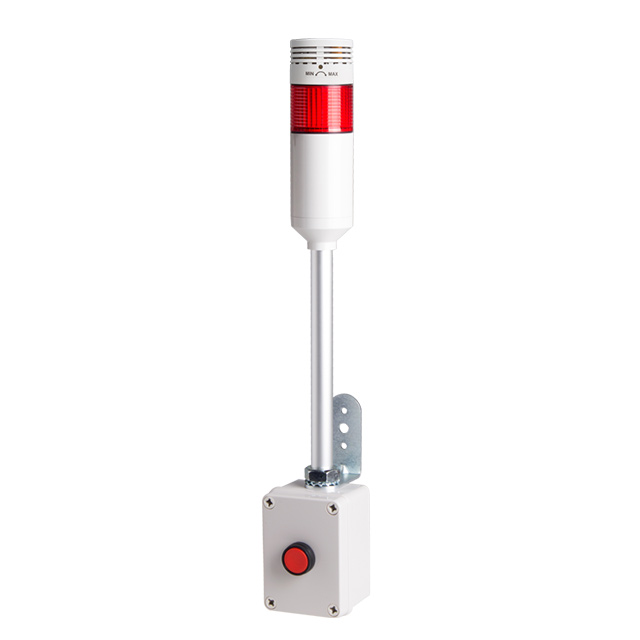

ATEP-R-Z
ActiveMenics
COMPLETE UNIT RED LED FLASHING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATEP-R-Z
ActiveMenics
COMPLETE UNIT RED LED FLASHING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATEP-R-Z | ATEP-R Series |
|---|---|---|
| Features | Pushbutton Control, Adjustable Volume | Pushbutton Control, Adjustable Volume |
| Function - Audible | Continuous | Continuous |
| Function - Lighting | Flashing | Steady, Flashing |
| Light Color | Red | Red, Green, Yellow, Blue, Clear |
| Number of Stacks | 1 | 1 - 5 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Termination Style | Cable with Connector | Cable with Connector |
| Type | Complete Unit | Complete Unit |
| Voltage - Supply | 110 VAC/DC | 110 VAC/DC |
ATEP-R Series
COMPLETE UNIT GR/R FLASH 2STACK
| Part | Number of Stacks | Type | Function - Audible | Termination Style | Voltage - Supply | Operating Temperature [Min] | Operating Temperature [Max] | Light Color | Features | Function - Lighting |
|---|---|---|---|---|---|---|---|---|---|---|
Menics ATEP-RG-Z | 2 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Green, Red | Adjustable Volume, Pushbutton Control | Flashing, Steady |
Menics ATEP-RYGB | 4 | Complete Unit | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Blue, Green, Red, Yellow | Pushbutton Control | Flashing, Steady | |
Menics ATEP-RYG-B | 3 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Green, Red, Yellow | Pushbutton Control | Flashing, Steady |
Menics ATEP-RY | 2 | Complete Unit | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Red, Yellow | Pushbutton Control | Flashing, Steady | |
Menics ATEP-RG-B | 2 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Green, Red | Pushbutton Control | Flashing, Steady |
Menics ATEP-R-Z | 1 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Red | Adjustable Volume, Pushbutton Control | Flashing |
Menics ATEP-RYG-Z | 3 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Green, Red, Yellow | Adjustable Volume, Pushbutton Control | Flashing, Steady |
Menics ATEP-RYGB-B | 4 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Blue, Green, Red, Yellow | Pushbutton Control | Flashing, Steady |
Menics ATEP-R-B | 1 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Red | Pushbutton Control | Flashing |
Menics ATEP-RY-B | 2 | Complete Unit | Continuous | Cable with Connector | 110 VAC/DC | -15 °C | 40 °C | Red, Yellow | Pushbutton Control | Flashing, Steady |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 171.00 | |
Description
General part information
ATEP-R Series
Stack Light Complete Unit Red LED Adjustable Volume, Pushbutton Control Cable with Connector
