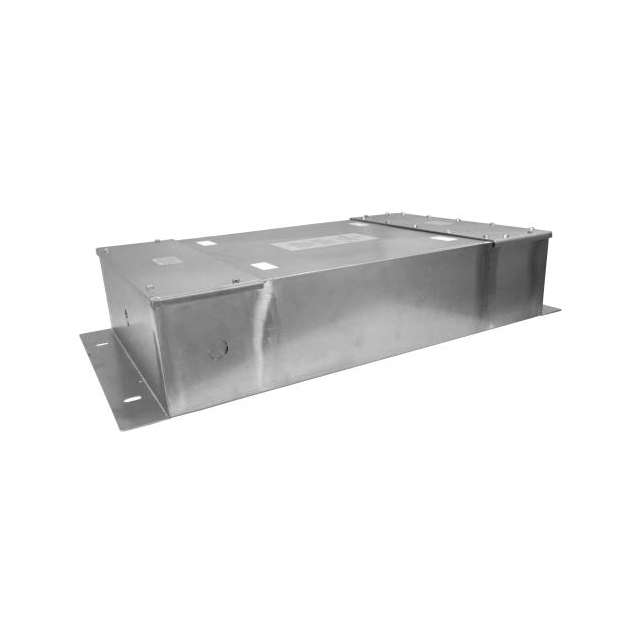

057.01013.00

Active

Astrodyne TDI

LINE FILTER 277V/480VAC 10A CHAS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 277V/480VAC 10A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	057.01013.00

Applications	General Purpose
Approval Agency	CE, SEMKO, cURus
Current	10 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Threaded Post (M6)
Voltage - Rated AC	277 V, 480 V
Voltage - Rated AC (Phase to Ground/Neutral)	2.2 kV

LINE FILTER 277V/480VAC 10A CHAS

Part	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Voltage - Rated AC (Phase to Ground/Neutral)	Filter Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination Style	Mounting Type
Astrodyne TDI 057.01013.00	10 A	60 Hz	50 Hz	277 V, 480 V	2.2 kV	Three Phase (Delta)	CE, cURus, SEMKO	85 °C	-40 °C	General Purpose	Threaded Post (M6)	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 10 A 277V, 480V 50/60Hz Threaded Post (M6)
