140-514-417-011

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 14 SU

Search across all available documentation for this part.

Active

EDAC Inc.

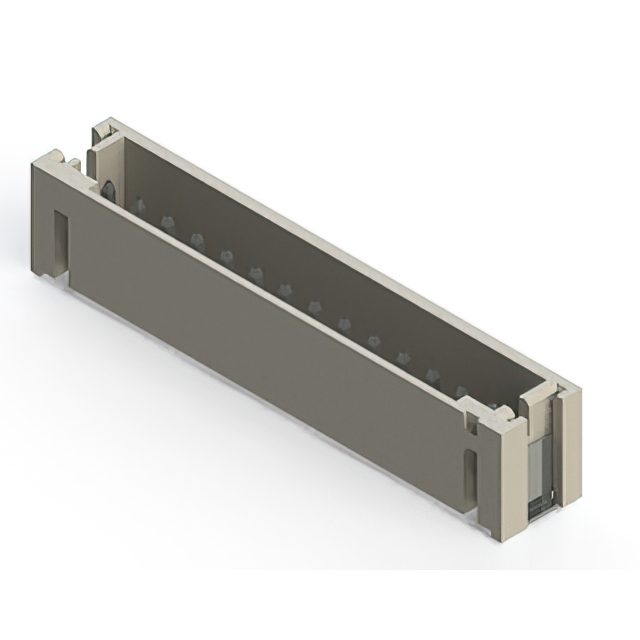

2.0MM PITCH CONNECTOR WITH 14 SU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-514-417-011	140-514 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	100 VAC	100 VAC

2.0MM PITCH CONNECTOR WITH 14 SU

Part	Contact Shape	Style	Contact Material	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Shrouding	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Insulation Material	Number of Positions	Number of Rows	Contact Type	Number of Positions Loaded	Contact Finish - Post	Termination	Current Rating (Amps)	Material Flammability Rating
EDAC Inc. 140-514-417-011	Square	Board to Cable/Wire	Brass	Solder Retention	Surface Mount	-40 °C	105 ░C	Detent Lock	100 VAC	0.079 in	2 mm	Natural	Shrouded - 4 Wall	Header	5.51 mm	0.217 in	Liquid Crystal Polymer (LCP)	14	1	Male Pin	All	Tin	Solder	2 A	UL94 V-0
EDAC Inc. 140-514-417-060	Square	Board to Cable/Wire	Brass	Solder Retention	Surface Mount, Right Angle	-25 °C	85 °C	Detent Lock	100 VAC	0.079 in	2 mm	Natural	Shrouded - 4 Wall	Header	5.51 mm	0.217 in	Nylon 9T, Polyamide (PA9T)	14	1	Male Pin	All	Tin	Solder	2 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.58

General part information

Connector Header Surface Mount 14 position 0.079" (2.00mm)
