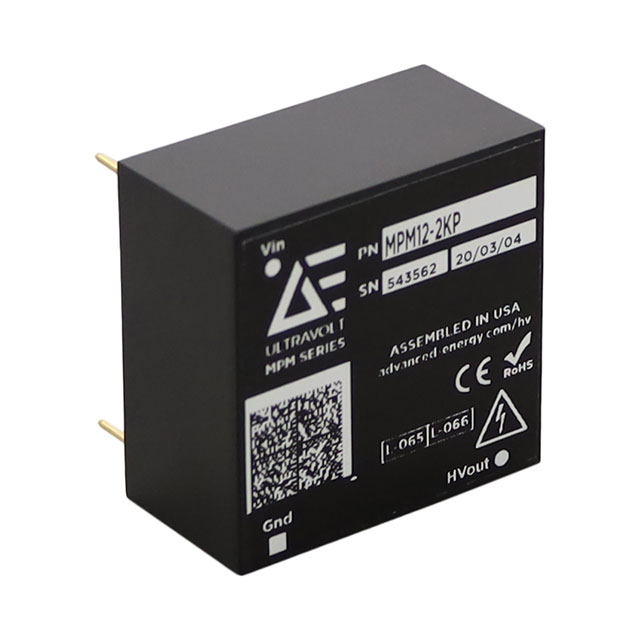

MPM12-2KP
ActiveULTRAVOLT / Advanced Energy
DC DC CONVERTER 334-2000V 1.5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM12-2KP |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 750 µA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 1.5 W |
| Size / Dimension [x] | 1.5 ", 38.1 mm |
| Size / Dimension [y] | 1.5 in, 38.1 mm |
| Size / Dimension [z] | 0.79 ", 20.1 mm |
| Type | High Voltage - Isolated Module |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Isolation | 100 V |
| Voltage - Output 1 [Max] | 2000 V |
| Voltage - Output 1 [Min] | 334 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 285.31 | |
| 5 | $ 280.71 | |||
| 10 | $ 276.11 | |||
| 25 | $ 257.70 | |||
Description
General part information
MPM12-2KP
High Voltage - Isolated Module DC DC Converter 1 Output 334 ~ 2000V 750µA 2V - 12V Input
