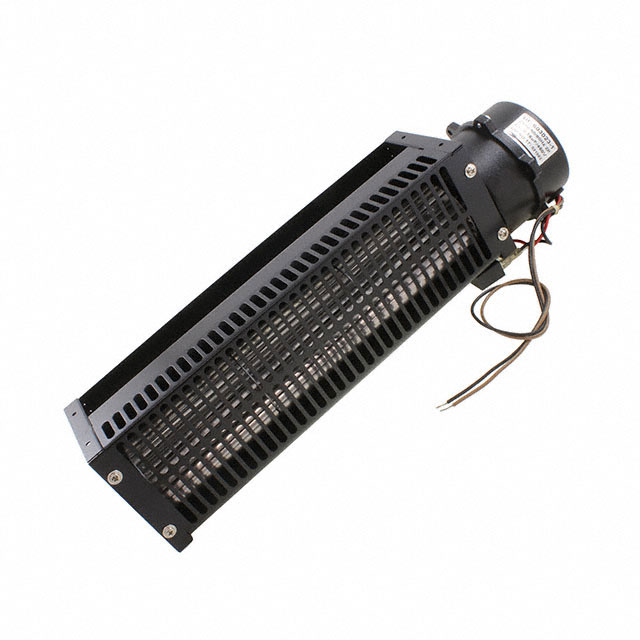

UF6030CBA23H-L

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 402X98X90MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 402X98X90MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 402mm L x 90mm H Ball 195.0 CFM (5.46m³/min) 2 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	UF6030CBA23H-L	UF6030 Series

Air Flow	195 CFM	195 CFM
Air Flow	5.46 m³/min	5.46 m³/min
Approval Agency	CE, TUV	CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	0.17 A	0.17 - 0.33 A
Fan Type	Blower, Cross Flow	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum	Aluminum
Material - Frame	Steel	Steel
Noise	53 dB	53 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	37 W	37 W
RPM	3000 RPM	3000 RPM
Size / Dimension [x]	402 mm	402 mm
Size / Dimension [y]	90 mm	90 mm
Static Pressure	74.7 Pa	74.7 Pa
Static Pressure	0.3 in H2O	0.3 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	230 VAC	120 - 230 VAC
Weight	4.3 lbs	4.3 lbs
Weight	2 kg	2 kg
Width [y]	98 mm	98 mm

FAN BLWR CF 120VAC 402X98X90MM

Part	Weight	Weight	Features	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Material - Blade	Material - Frame	Width [y]	RPM	Approval Agency	Termination	Static Pressure	Static Pressure	Fan Type	Current Rating (Amps)	Noise	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Power (Watts)
Mechatronics Fan Group UF6030CBA12H-L	4.3 lbs	2 kg	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	195 CFM	5.46 m³/min	70 °C	70 °C	-40 °C	-40 °C	120 VAC	Aluminum	Steel	98 mm	3000 RPM	CE, TUV	2 Wire Leads	74.7 Pa	0.3 in H2O	Blower, Cross Flow	0.33 A	53 dB	90 mm	402 mm	Ball	37 W
Mechatronics Fan Group UF6030CBA23H-L	4.3 lbs	2 kg	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	195 CFM	5.46 m³/min	70 °C	70 °C	-40 °C	-40 °C	230 VAC	Aluminum	Steel	98 mm	3000 RPM	CE, TUV	2 Wire Leads	74.7 Pa	0.3 in H2O	Blower, Cross Flow	0.17 A	53 dB	90 mm	402 mm	Ball	37 W
