16491-303
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,094,10,10,13,13,00,W8
Deep-Dive with AI
Search across all available documentation for this part.
16491-303
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,094,10,10,13,13,00,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 16491-303 |
|---|---|
| Current - Max [Max] | 2.9 A |
| Delta Tmax @ Th | 25 °C, 85 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 5.84 mm |
| Number of Stages | 2 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 7.6 W |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 14.86 mm |
| Voltage - Max [Max] | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 160.40 | |
| 5 | $ 150.76 | |||
| 10 | $ 146.78 | |||
| 25 | $ 141.69 | |||
Description
General part information
16491-303

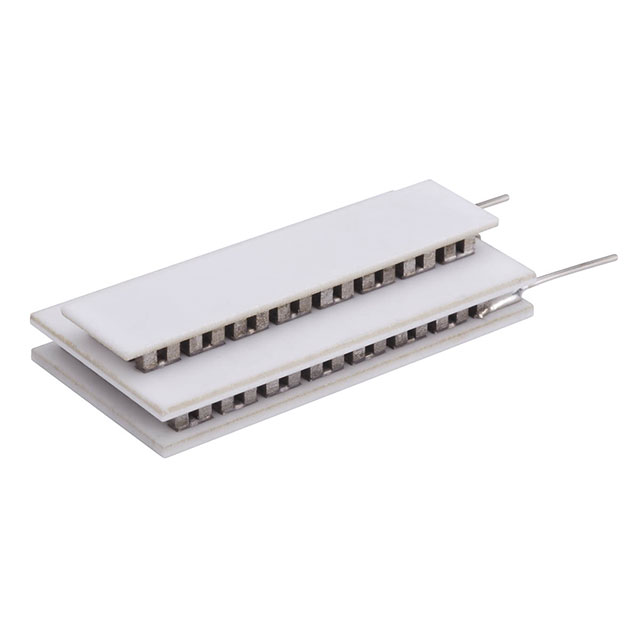

Peltier Module 7.6W @ 25°C 2.9 A 80°C
Documents
Technical documentation and resources
