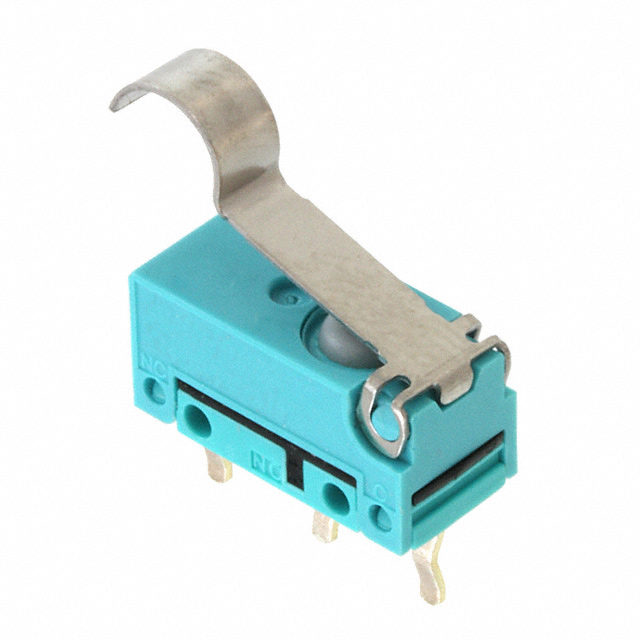

ABJ1514609

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

ABJ1514609

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ABJ151 Series

Switch SPDT Through Hole

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABJ1514609	ABJ151 Series

Actuator Type	Simulated Roller, Lever	Lever, Straight, Round (Pin Plunger), Roller, Lever, Simulated Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	2 A	2 - 100 mA
Differential Travel	0.5 mm	0.13 - 0.5 mm
Differential Travel	0.02 in	0.005 - 0.02 in
Electrical Life	6000 Cycles	6000 - 100000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	65 gf	40 - 200 gf
Operating Position	-	5.5 - 13.1 mm
Operating Position	-	0.217 - 0.516 "
Operating Position [x]	9.8 mm	9.8 mm
Operating Position [x]	0.386 in	0.386 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.02 in	0.01 - 0.02 in
Overtravel	0.5 mm	0.25 - 0.5 mm
Pretravel	0.12 in	0.024 - 0.12 in
Pretravel	3 mm	0.6 - 3 mm
Release Force	5.099 gf	3.059 - 25 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABJ151 Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Electrical Life	Mechanical Life	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Pretravel	Pretravel	Current Rating (Amps)	Actuator Type	Operating Force	Switch Function	Differential Travel	Differential Travel	Mounting Type	Termination Style	Voltage Rating - DC	Circuit	Operating Position	Operating Position	Voltage Rating - AC	Ingress Protection
Panasonic Electric Works ABJ1512619	6000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	5.099 gf	0.12 in	3 mm	100 mA	Lever, Straight	65 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	6.8 mm	0.268 "	125 V	IP50
Panasonic Electric Works ABJ151060	30000 Cycles	1000000 Cycles	0.01 in	0.25 mm	85 °C	-40 °C	25 gf	0.024 in	0.6 mm	2 A	Round (Pin Plunger)	200 gf	On-Mom	0.13 mm	0.005 in	Through Hole	PC Pin	30 V	SPDT	5.5 mm	0.217 in	125 V	IP50
Panasonic Electric Works ABJ151040	30000 Cycles	1000000 Cycles	0.01 in	0.25 mm	85 °C	-40 °C	15 gf	0.024 in	0.6 mm		Round (Pin Plunger)	125 gf	On-Mom	0.13 mm	0.005 in	Through Hole	PC Pin	30 V	SPDT	5.5 mm	0.217 in	125 V	IP50
Panasonic Electric Works ABJ1516419	6000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	3.059 gf	0.12 in	3 mm	100 mA	Lever, Roller	40 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	13.1 mm	0.516 in	125 V	IP50
Panasonic Electric Works ABJ151660	30000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	5.099 gf	0.12 in	3 mm	2 A	Lever, Roller	65 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	13.1 mm	0.516 in	125 V	IP50
Panasonic Electric Works ABJ151241	100000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	3.059 gf	0.12 in	3 mm	100 mA	Lever, Straight	40 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	6.8 mm	0.268 "	125 V	IP50
Panasonic Electric Works ABJ1516619	6000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	5.099 gf	0.12 in	3 mm	100 mA	Lever, Roller	65 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	13.1 mm	0.516 in	125 V	IP50
Panasonic Electric Works ABJ1510419	6000 Cycles	1000000 Cycles	0.01 in	0.25 mm	85 °C	-40 °C	15 gf	0.024 in	0.6 mm	100 mA	Round (Pin Plunger)	125 gf	On-Mom	0.13 mm	0.005 in	Through Hole	PC Pin	30 V	SPDT	5.5 mm	0.217 in	125 V	IP50
Panasonic Electric Works ABJ1512419	6000 Cycles	1000000 Cycles	0.02 in	0.5 mm	85 °C	-40 °C	3.059 gf	0.12 in	3 mm	100 mA	Lever, Straight	40 gf	On-Mom	0.5 mm	0.02 in	Through Hole	PC Pin	30 V	SPDT	6.8 mm	0.268 "	125 V	IP50
Panasonic Electric Works ABJ151041	100000 Cycles	1000000 Cycles	0.01 in	0.25 mm	85 °C	-40 °C	15 gf	0.024 in	0.6 mm	100 mA	Round (Pin Plunger)	125 gf	On-Mom	0.13 mm	0.005 in	Through Hole	PC Pin	30 V	SPDT	5.5 mm	0.217 in	125 V	IP50
