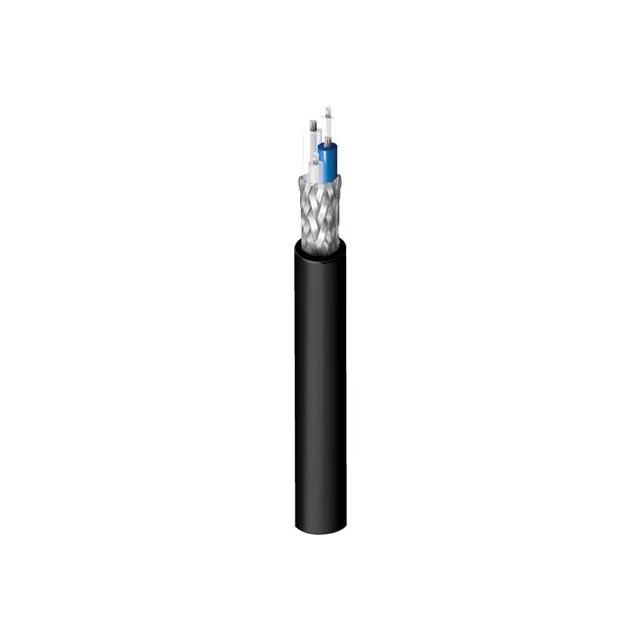

8412P 0091000

Active

Belden Inc.

2 #20 FEP BRD FEP 78 OHM

Search across all available documentation for this part.

Active

Belden Inc.

2 #20 FEP BRD FEP 78 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8412P 0091000

Cable Type	Microphone
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.198 in
Jacket (Insulation) Diameter [diameter]	5.03 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Usage	Audio
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Ratings	Number of Conductors	Length	Length	Jacket Color
Belden Inc. 8412P 009500	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)	Microphone	20 AWG	0.198 in	5.03 mm	200 °C	-70 °C	500 '	152.4 m	Audio	28	7	300 V	Copper Tinned	UL Style CMP	2
Belden Inc. 8412P 0091000	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)	Microphone	20 AWG	0.198 in	5.03 mm	200 °C	-70 °C			Audio	28	7	300 V	Copper Tinned	UL Style CMP	2	1000 ft	304.8 m
Belden Inc. 8412P 0101000	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)	Microphone	20 AWG	0.198 in	5.03 mm	200 °C	-70 °C			Audio	28	7	300 V	Copper Tinned	UL Style CMP	2	1000 ft	304.8 m	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.59

General part information

2 Conductor Microphone Cable White 20 AWG 1000.0' (304.8m)
