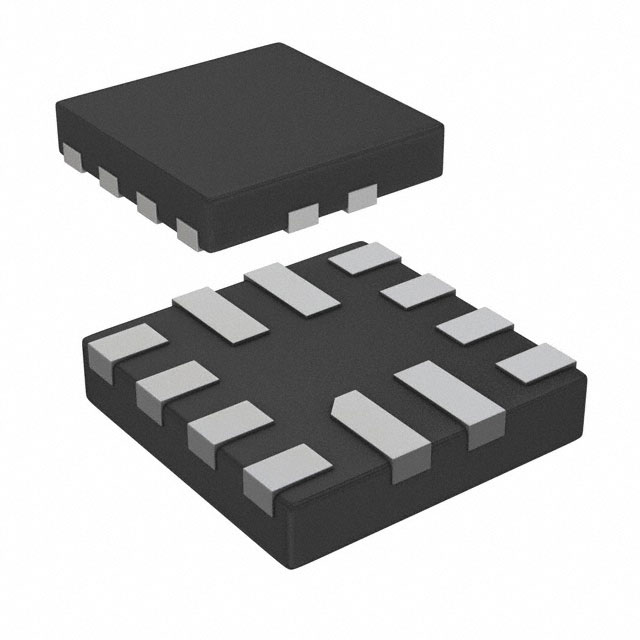

PI5USB30216DXUAEX
ActiveUSB PLUG ORIENTATION (CC PINS) DETECTOR (WITH ACTIVE HIGH ENABLE)
Deep-Dive with AI
Search across all available documentation for this part.
PI5USB30216DXUAEX
ActiveUSB PLUG ORIENTATION (CC PINS) DETECTOR (WITH ACTIVE HIGH ENABLE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI5USB30216DXUAEX |
|---|---|
| Applications | USB, Type-C Configuration |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-XFQFN |
| Supplier Device Package | 12-STQFN |
| Supplier Device Package [x] | 1.6 |
| Supplier Device Package [y] | 1.6 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 3500 | $ 0.48 | ||
| 7000 | $ 0.46 | |||
| 10500 | $ 0.44 | |||
| 17500 | $ 0.43 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.85 | |
| 10 | $ 1.14 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.53 | |||
Description
General part information
PI5USB30216D Series
The DIODES™ PI5USB30216D provides a cost-effective solution for USB 3.0 Type-C connector applications. PI5USB30216D detects the plug-in orientation of the cable at a Type-C connector. It supports host mode, device mode and dual role mode ports with automatic configuration based on the voltage levels detected on CC pins. It is a fully-integrated solution with ultra-low power dissipation. PI5USB30216D enters power-saving mode when EN pin is pulled down to GND through an internal resistor.
