100025215

Active

Telegartner Inc

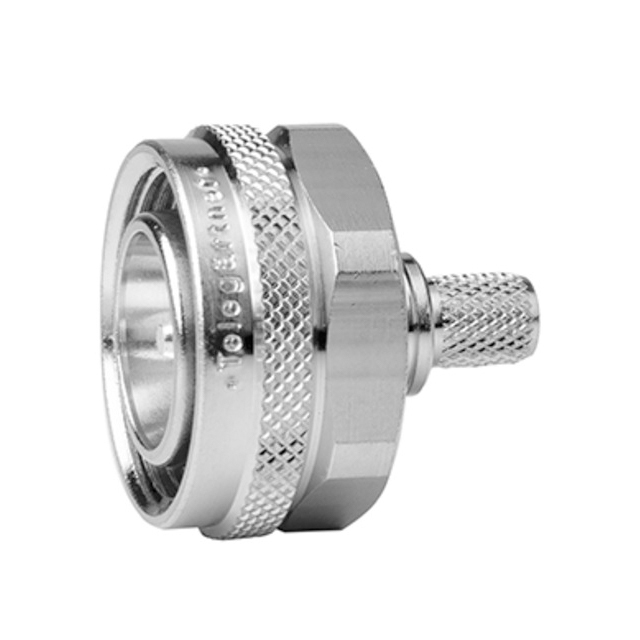

4.3-10 PLG STR CR/CR HS G30 G54

Search across all available documentation for this part.

Active

Telegartner Inc

4.3-10 PLG STR CR/CR HS G30 G54

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025215	J01440A2 Series

Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Silver	Silver
Connector Style	4.3/10	4.3/10
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp

4.3-10 PLG STR CR/CR HS G30 G54

Part	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Impedance	Center Contact Material	Mounting Type	Frequency - Max [Max]	Dielectric Material	Connector Type	Connector Style	Body Finish	Number of Ports	Center Contact Plating	Body Material	Shield Termination
Telegartner Inc 100025215	Crimp	85 °C	-40 °C	Silver	50 Ohms	Brass	Free Hanging (In-Line)	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	4.3/10	White Bronze	1	Silver	Brass	Crimp
Telegartner Inc 100025219	Crimp	85 °C	-40 °C	Silver	50 Ohms	Brass	Free Hanging (In-Line)	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	4.3/10	White Bronze	1	Silver	Brass	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
