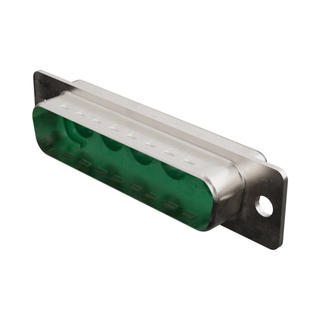

Specification	1727040033

Color	Green
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Coax or Power, Coax, Power
Dielectric Material	Glass Filled, Polyester
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Number of Rows	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-55 °C
Part Code	5W5
Position Types	Power, Coax
Shell Material	Steel
Shell Size	3
