ABJ241040

Active

Panasonic Electric Works

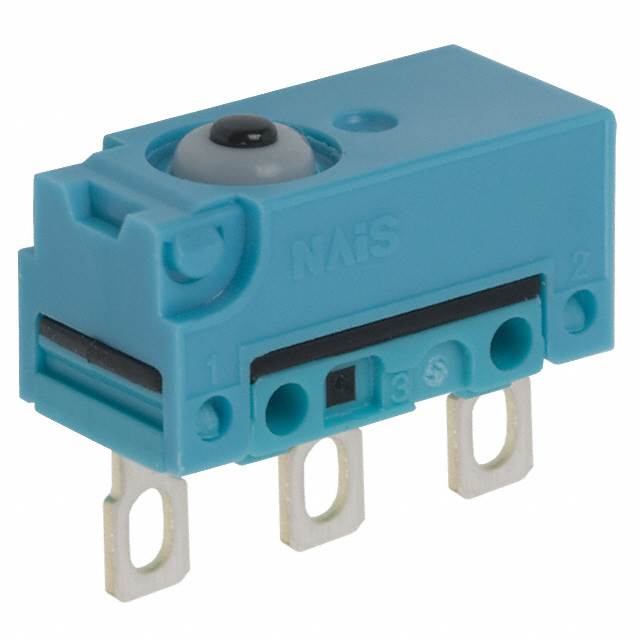

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

ABJ241040

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.07

Description

General part information

ABJ241 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABJ241040	ABJ241 Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Simulated Roller, Lever, Roller, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	-	2 - 100 A
Differential Travel	0.13 mm	0.13 - 0.5 mm
Differential Travel	0.005 in	0.005 - 0.02 in
Electrical Life	30000 Cycles	6000 - 100000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	125 gf	40 - 200 gf
Operating Position	-	0.328 - 0.575 "
Operating Position	-	8.3 - 14.6 mm
Operating Position [x]	0.276 in	0.276 in
Operating Position [x]	7 mm	7 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.25 mm	0.25 - 0.5 mm
Overtravel	0.01 in	0.01 - 0.02 in
Pretravel	0.024 in	0.024 - 0.12 in
Pretravel	0.6 mm	0.6 - 3 mm
Release Force	15 gf	3.059 - 25 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABJ241 Series

SWITCH SNAP ACTION SPDT 2A 125V

Part	Operating Position	Operating Position	Circuit	Switch Function	Current Rating (Amps)	Release Force	Actuator Type	Ingress Protection	Overtravel	Overtravel	Termination Style	Pretravel	Pretravel	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Differential Travel	Differential Travel	Mechanical Life	Operating Force	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ABJ2412609	0.328 "	8.3 mm	SPDT	On-Mom	2 A	5.099 gf	Lever, Straight	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	65 gf
Panasonic Electric Works ABJ2414619	0.445 in	11.3 mm	SPDT	On-Mom	100 mA	5.099 gf	Lever, Simulated Roller	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	65 gf
Panasonic Electric Works ABJ2416619	0.575 in	14.6 mm	SPDT	On-Mom	100 mA	5.099 gf	Lever, Roller	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	65 gf
Panasonic Electric Works ABJ2410409			SPDT	On-Mom		15 gf	Round (Pin Plunger)	IP50	0.01 in	0.25 mm	Solder Lug	0.024 in	0.6 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.13 mm	0.005 in	1000000 Cycles	125 gf	0.276 in	7 mm
Panasonic Electric Works ABJ241261	0.328 "	8.3 mm	SPDT	On-Mom	100 mA	5.099 gf	Lever, Straight	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	100000 Cycles	0.5 mm	0.02 in	1000000 Cycles	65 gf
Panasonic Electric Works ABJ2414419	0.445 in	11.3 mm	SPDT	On-Mom	100 mA	3.059 gf	Lever, Simulated Roller	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	40 gf
Panasonic Electric Works ABJ2412409	0.328 "	8.3 mm	SPDT	On-Mom		3.059 gf	Lever, Straight	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	40 gf
Panasonic Electric Works ABJ2414609	0.445 in	11.3 mm	SPDT	On-Mom	2 A	5.099 gf	Lever, Simulated Roller	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	65 gf
Panasonic Electric Works ABJ2416409	0.575 in	14.6 mm	SPDT	On-Mom		3.059 gf	Lever, Roller	IP50	0.02 in	0.5 mm	Solder Lug	0.12 in	3 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.5 mm	0.02 in	1000000 Cycles	40 gf
Panasonic Electric Works ABJ2410419			SPDT	On-Mom	100 mA	15 gf	Round (Pin Plunger)	IP50	0.01 in	0.25 mm	Solder Lug	0.024 in	0.6 mm	Chassis Mount	125 V	30 V	85 °C	-40 °C	6000 Cycles	0.13 mm	0.005 in	1000000 Cycles	125 gf	0.276 in	7 mm
